Paoli USA

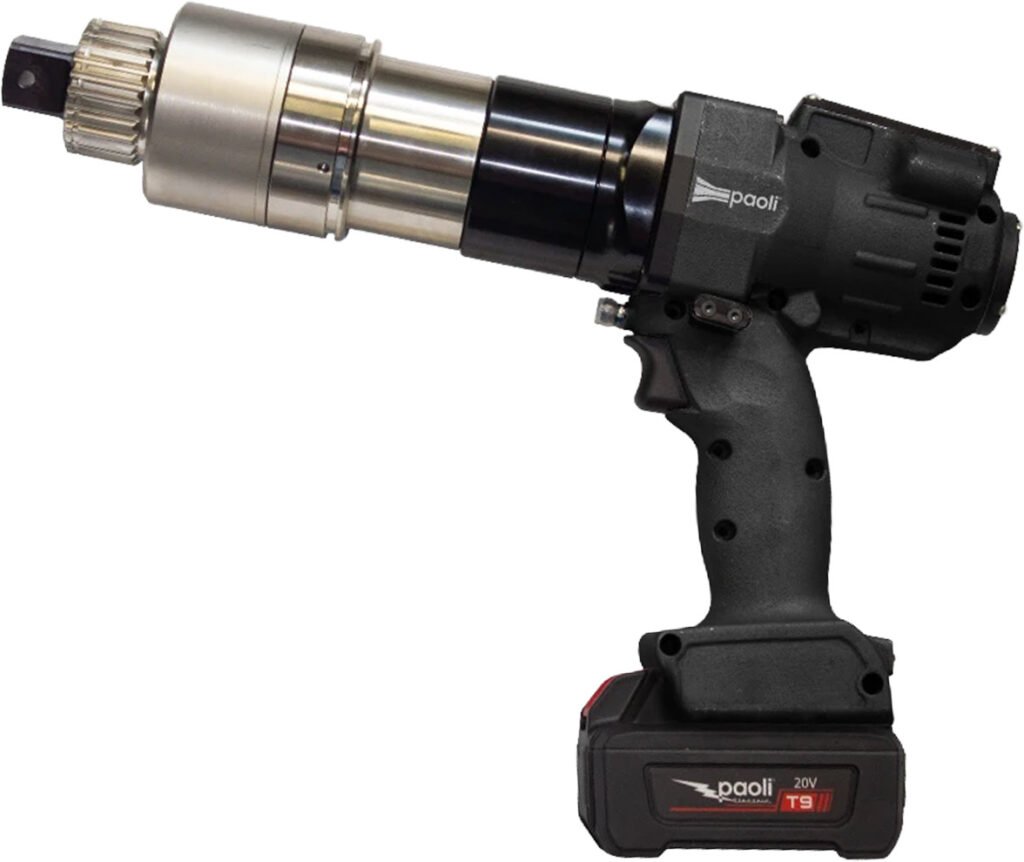

Paoli Heavy Duty Battery Powered Nutrunner
3/4", 1", or 1-1/2" square drive, torque ranges from 95 to 5900 ft-lb, lightweight aluminum design
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Paoli Heavy Duty Battery Powered Nutrunner is a cordless impact wrench with heavy duty handle and an all-aluminum body, engineered for durability and lightweight performance in industrial assembly applications. The battery powered nutrunner features a high-performance gearbox with a slim design, a brushless motor, a gear selector, and an automatic locking mechanism.
Overview and Features
Features
- 3/4″, 1″, or 1-1/2″ square drive
- 18V voltage
- Torque ranges:
- DP05-34B HD: 95 to 370 ft-lb (130 to 550 Nm)
- DP10-34B HD: 130 to 740 ft-lb (180 to 1000 Nm)
- DP20-10B HD: 160 to 1480 ft-lb (220 to 2000 Nm)
- DP30-10B HD: 240 to 2220 ft-lb (330 to 3000 Nm)
- DP36-10B HD: 280 to 2660 ft-lb (380 to 3600 Nm)
- DP48-15B HD: 368 to 3540 ft-lb (500 to 4800 Nm)
- DP80-15B HD: 664 to 5900 ft-lb (900 to 8000 Nm)
- 14.37″ to 20.55″ length
- 11.7 to 29.7 lbs
What’s in the Box
- Paoli Heavy Duty Battery Powered Nutrunner
- Standard reaction arm
- T9 lithium ion battery
- Battery charger
- Hard case
- Documents:
- Operating instructions
- Technical data sheet
- Torque chart
- EU declaration of conformity
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Anvil Size | 3/4", 1", 1-1/2" |
|---|---|
| Torque Range | 95 to 370 ft-lb, 130 to 740 ft-lb, 160 to 1480 ft-lb, 240 to 2220 ft-lb, 280 to 2660 ft-lb, 368 to 3540 ft-lb, 664 to 5900 ft-lb |
