Paoli DP 92 Heavy Duty Impact Wrench
3/8" square drive, 90 ft-lb max torque, 91 PSI operating pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

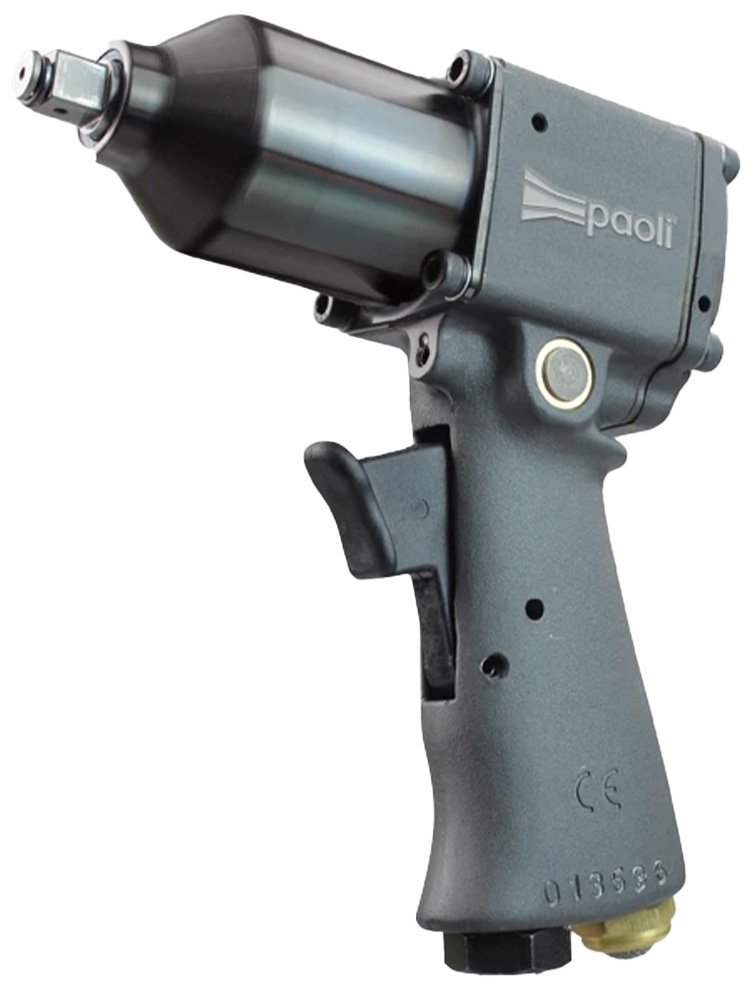

The Paoli DP 92 Heavy Duty Impact Wrench is a compact 3/8″ square drive wrench. It features the 2-jaw hammer mechanism, producing a single impact for each cycle on both jaws and a high torque value. This system also gives low vibration levels and is suggested mainly for tightening hard joints.
Overview and Features
Features
- 3/8″ square drive
- 90 ft-lb (120 Nm) max torque
- 91 PSI operating pressure
- 1200 impacts per minute
- 1/4″ BSP connection
- 5.75″ length
- 3.0 lbs
What’s in the Box
- DP 92 Impact Wrench
- Hanger
- Grease for hammer mechanism
- Oil for impact wrench motors
- 4 socket head cap screws
- 4 lock washers
- 2 front gaskets (0.1 mm – 0.2mm)
- Operating and maintenance manual
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
