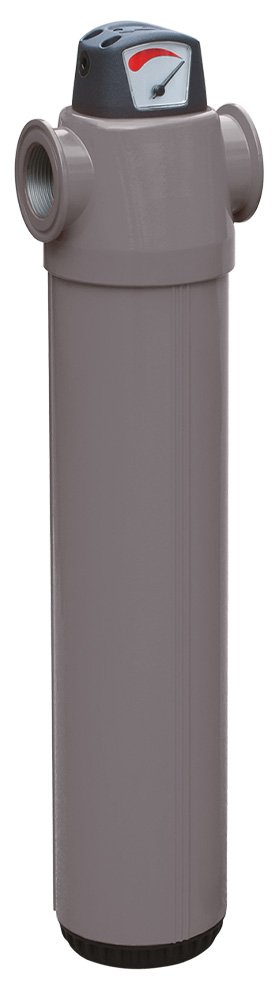

OZEN OFLGN Series Inline Air Compressor Filter
20 to 1600 SCFM capacities, high temperature option available, choice of 4 filtration grades
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN OFLGN Series Inline Air Compressor Filter is designed with four filtration options (Activated Carbon, Pre-Filter, General Purpose, and Oil Removal). The filters have a ZERO clearance element replacement design to fit a wide range of installation applications. The OFLGN Series meets ISO8573:1:2010 air quality requirements.
Overview and Features
Features
- 20 to 1600 SCFM
- Zero clearance filter element design
- Filtration Grades:
- A: Activated Carbon – 0.01 micron particulate, 0.003 mg/m³ oil (not available with high-temp)
- P: Pre-Filter – 5 micron particulate, 5 mg/m³ oil
- X: General Purpose – 1 micron particulate, 0.5 mg/m³ oil
- Y: Oil Removal – 0.01 micron particulate, 0.01 mg/m³ oil
- 290 PSI max pressure
- NPT threaded connections
- High temperature model available
- Meets ISO8573:1:2010 air quality requirements
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 20 SCFM, 32 SCFM, 40 SCFM, 60 SCFM, 75 SCFM, 90 SCFM, 130 SCFM, 175 SCFM, 235 SCFM, 295 SCFM, 350 SCFM, 470 SCFM, 590 SCFM, 700 SCFM, 910 SCFM, 1175 SCFM, 1600 SCFM |
|---|---|
| Filter Type | Standard, High Temperature |
| Filter Element | Activated Carbon (0.01 micron particulate, 0.003 mg/m³ oil), Pre-Filter (5 micron particulate, 5 mg/m³ oil), General Purpose (1 micron particulate, 0.5 mg/m³ oil), Oil Removal (0.01 micron particulate, 0.01 mg/m³ oil) |
| Connection Size | 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/4" NPT, 1-1/2" NPT, 2" NPT, 2-1/2" NPT, 3" NPT |
