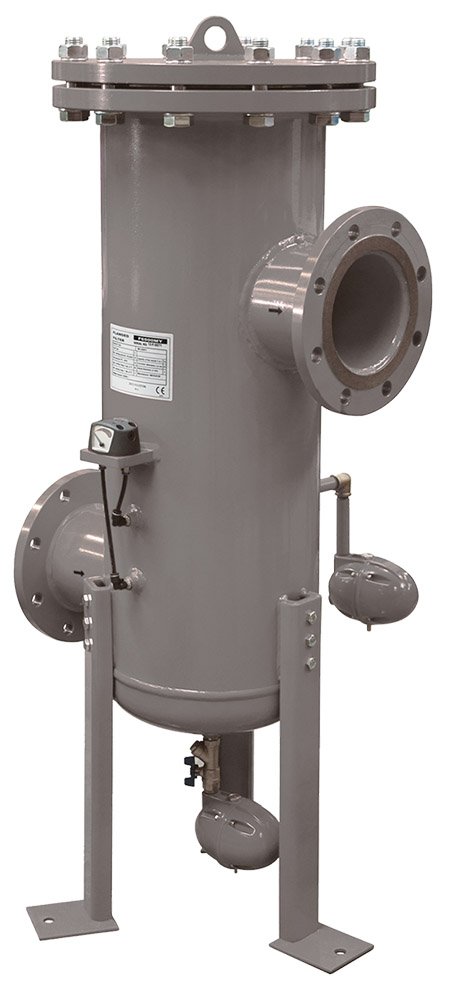

OZEN OFLF Series High Capacity Flanged Compressed Air Filter
1500 to 17000 SCFM, 200 PSI max pressure, 3" to 14" flange connections, external float drains
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN OFLF Series High Capacity Flanged Compressed Air Filter is designed to provide high-quality air. Two external float drains easily drain the liquid collected at certain points. The element that is placed into the filter by the tie rod system can be easily changed from the upper closure. Tanks are made according to ASME standards are used.
Overview and Features
Features
- 1500 to 17000 SCFM
- 200 PSI max working pressure
- Flange connections
- External float drains
- Filtration Grades:
- A: Activated Carbon – 0.01 micron particulate, 0.003 mg/m³ oil (not available with high-temp)
- P: Pre-Filter – 5 micron particulate, 5 mg/m³ oil
- X: General Purpose – 1 micron particulate, 0.5 mg/m³ oil
- Y: Oil Removal – 0.01 micron particulate, 0.01 mg/m³ oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 1500 SCFM, 1900 SCFM, 2500 SCFM, 3800 SCFM, 5000 SCFM, 6500 SCFM, 8300 SCFM, 10000 SCFM, 12400 SCFM, 15000 SCFM, 17000 SCFM |
|---|---|
| Filter Element | Pre-Filter (5 micron particulate, 5 mg/m³ oil), General Purpose (1 micron particulate, 0.5 mg/m³ oil), Oil Removal (0.01 micron particulate, 0.01 mg/m³ oil), Activated Carbon (0.01 micron particulate, 0.003 mg/m³ oil) |
| Connection Size | 3" Flange, 4" Flange, 6" Flange, 8" Flange, 10" Flange, 12" Flange, 14" Flange |
