OZEN Air Technology

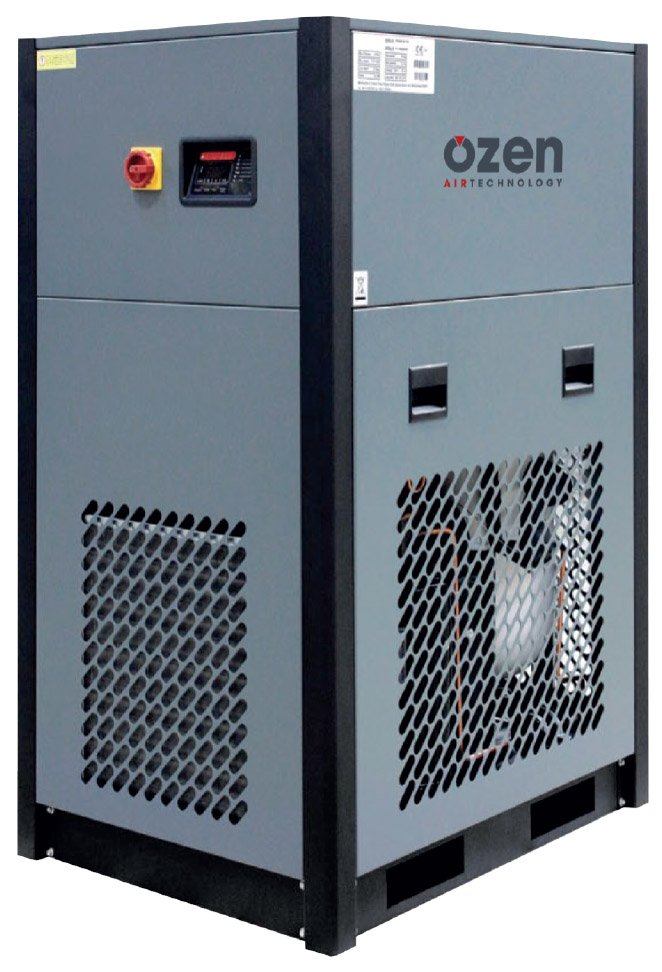

OZEN ODRD-P High Pressure Refrigerated Air Dryer
25 to 1700 SCFM, 40°F dew point, 650 PSIG max working pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN ODRD-P High Pressure Refrigerated Air Dryer is designed for applications requiring dry air in high pressure (580 PSI nominal, 650 PSI max) applications. The fin exchanger allows for direct transfer of the cold from the refrigerant to the compressed air.
Overview and Features
Features
- 25 to 1700 SCFM capacity options
- 650 PSIG max working pressure
- 120°F max inlet air temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 25 SCFM, 40 SCFM, 70 SCFM, 100 SCFM, 140 SCFM, 190 SCFM, 235 SCFM, 270 SCFM, 350 SCFM, 425 SCFM, 470 SCFM, 550 SCFM, 700 SCFM, 850 SCFM, 1000 SCFM, 1200 SCFM, 1300 SCFM, 1400 SCFM, 1500 SCFM, 1700 SCFM |
|---|---|
| Voltage | 115/1/60, 230/1/60, 230/3/60, 460/3/60 |
| Connection Size | 3/4” NPT, 1-1/4” NPT, 2” NPT, 2-1/2” NPT |
