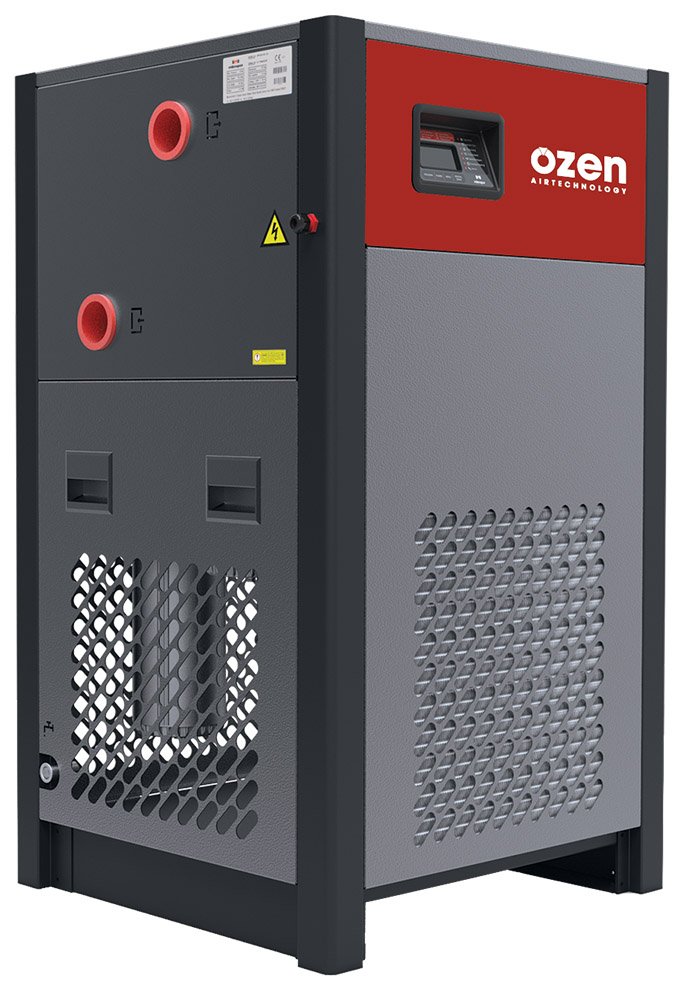

OZEN ODRD Digital Cycling Refrigerated Air Dryer
10 to 5000 SCFM, 38°F dew point, 230 PSIG max working pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN ODRD Digital Cycling Refrigerated Air Dryer is a compact all-in-one air quality solution that features a microprocessor-controlled digital cycling compressor with an aluminum plate 3-in-1 heat exchanger. Available in capacities from 10 to 5000 SCFM, the ODRD Series has a nominal working pressure of 100 PSIG and a max of 230 PSIG. 10 to 425 SCFM models feature the Digi-Pro Digital Control Unit while the 550 to 5000 SCFM models feature the ESD Digital Control Unit.
Overview and Features
Features
- 10 to 5000 SCFM capacity options
- 230 PSIG max working pressure
- 140°F max inlet air temperature
- Aluminum plate heat exchanger
- Controllers:
- Digi-pro digital control unit (10 to 425 SCFM models)
- ESD digital control unit (550 to 5000 SCFM models)
- Integrated filters included with 10 to 1100 SCFM models
- R134a refrigerant gas
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 10 SCFM, 15 SCFM, 25 SCFM, 30 SCFM, 35 SCFM, 60 SCFM, 75 SCFM, 100 SCFM, 125 SCFM, 140 SCFM, 175 SCFM, 200 SCFM, 250 SCFM, 350 SCFM, 425 SCFM, 550 SCFM, 700 SCFM, 900 SCFM, 1100 SCFM, 1350 SCFM, 1500 SCFM, 2000 SCFM, 2350 SCFM, 2750 SCFM, 3000 SCFM, 3600 SCFM, 4000 SCFM, 5000 SCFM |
|---|---|
| Voltage | 115/1/60, 230/1/60, 230/3/60, 460/3/60 |
| Connection Size | 1/2” NPT, 3/4” NPT, 1-1/2” NPT, 2” NPT, 3” NPT, 4" Flange, 6" Flange, 8" Flange |
