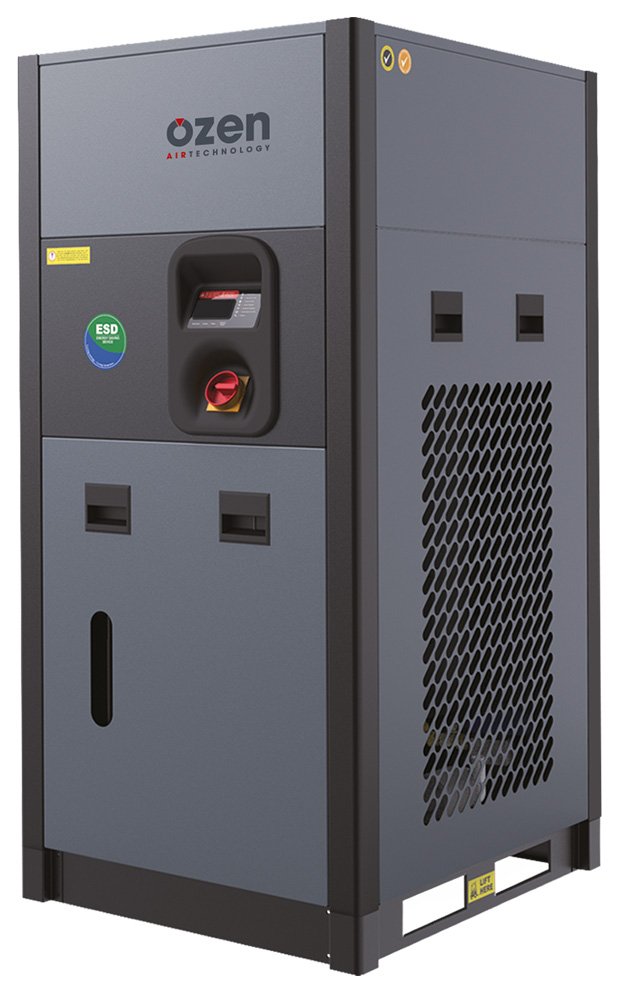

OZEN ODRC Thermal Mass Cycling Refrigerated Air Dryer
100 to 5000 SCFM, 40°F dew point, 230 PSIG max working pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The OZEN ODRC Thermal Mass Cycling Refrigerated Air Dryer provides energy savings with varying inlet loads. The refrigeration circuit cools a liquid (thermal mass) and removes the heat from the compressed air. Utilizing the thermal mass enables the refrigerant compressor to cycle on and off to reduce energy consumption and provide a stable dewpoint.
Overview and Features
Features
- 100 to 5000 SCFM capacity options
- 230 PSIG max working pressure
- 150°F max inlet air temperature
- Integrated filters included with 100 to 1500 SCFM models
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 100 SCFM, 125 SCFM, 140 SCFM, 175 SCFM, 200 SCFM, 250 SCFM, 350 SCFM, 425 SCFM, 550 SCFM, 700 SCFM, 900 SCFM, 1100 SCFM, 1350 SCFM, 1500 SCFM, 2000 SCFM, 2350 SCFM, 2750 SCFM, 3000 SCFM, 3600 SCFM, 4000 SCFM, 5000 SCFM |
|---|---|
| Voltage | 115/1/60, 230/1/60, 230/3/60, 460/3/60 |
| Connection Size | 1-1/2” NPT, 2” NPT, 3” NPT, 4" Flange, 6" Flange, 8" Flange |
