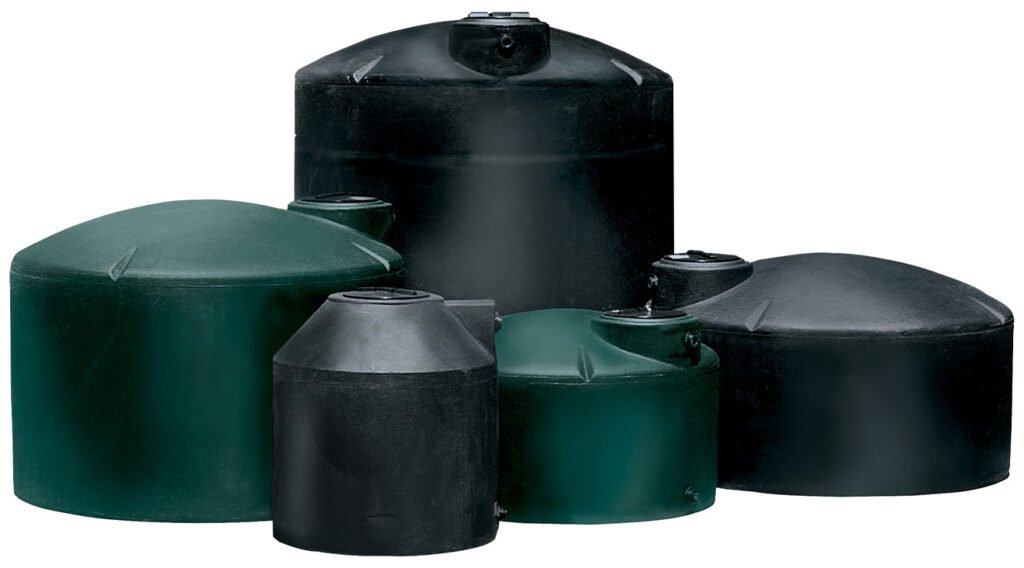

Norwesco Vertical Water Storage Tank
Designed for safe storage of potable water, available in sizes from 40 to 15500 gallons, specific gravity of 1.1
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Norwesco Vertical Water Storage Tank is manufactured using resins that have FDA approval for the safe storage of potable water. The black or green color limits light penetration, which reduces the growth of water-borne algae. These tanks are designed for use with water only and are rated to a specific gravity of 1.1. They should not be used for chemicals, fertilizers, or any other product. The tanks will have NSF61 approval where applicable.
Applications:
- Ideal for rain collection
- drinking water storage
- hydroponic growing operations
- fire suppression water storage
Overview and Features
Features
- 40 to 15500 gallon capacity options
- Black or green colors available
- 1.1 specific gravity
- FDA approved resin
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Tank Capacity | 40 gallon, 75 gallon, 100 gallon, 120 gallon, 150 gallon, 165 gallon, 175 gallon, 200 gallon, 220 gallon, 250 gallon, 300 gallon, 305 gallon, 500 gallon, 525 gallon, 550 gallon, 600 gallon, 750 gallon, 1000 gallon, 1075 gallon, 1100 gallon, 1350 gallon, 1500 gallon, 1525 gallon, 1550 gallon, 2000 gallon, 2100 gallon, 2450 gallon, 2500 gallon, 2550 gallon, 3000 gallon, 3450 gallon, 4995 gallon, 5000 gallon, 6500 gallon, 6600 gallon, 7750 gallon, 10000 gallon, 11000 gallon, 12000 gallon, 15500 gallon |
|---|---|
| Tank Color | Black, Green, CA Green, Dark Green |
| Dimensions (Diameter x Height) | 18" x 42", 23" x 50", 23" x 63", 38" x 31", 30" x 56", 31" x 56", 30" x 64", 30" x 72", 35" x 59", 42" x 44", 35" x 68", 35" x 89", 46" x 50", 46" x 78", 48" x 73", 67" x 44", 64" x 50", 46" x 107", 64" x 80", 64" x 81", 72" x 66", 87" x 51", 87" x 53", 71" x 88", 93" x 60", 93" x 62", 87" x 67", 90" x 84", 93" x 80", 87" x 89", 96" x 87", 96" x 96", 95" x 91", 98" x 86", 102" x 79", 93" x 95", 95" x 109", 98" x 101", 102" x 93", 96" x 120", 142" x 89", 102" x 152", 119" x 112", 141" x 86", 119" x 150", 144" x 101", 144" x 122", 141" x 160", 144" x 167", 141" x 193", 141" x 244" |
| Fill Opening / Outlet Specifications | 8" fill opening, 3/4" bottom fitting, 3/4" top fitting, 8" fill opening, 1-1/4" bottom fitting, 1-1/4" top fitting, 8" fill opening, 2" bottom fitting, 1-1/2" top fitting, 5" fill opening, 2" bottom fitting, 1-1/2" top fitting, 16" fill opening, 2" polypropylene fitting, 8" fill opening, 2" bottom fitting, 16" fill opening, 2" bottom fitting, 1-1/2" top fitting, 22" fill opening, 2" bottom fitting, 1-1/2" top fitting, 16" fill opening, 2" bottom fitting, 22" fill opening, 2" bottom fitting, 22" fill opening, 3" polypropylene fitting, 2" reducer |
