Norwesco Vertical Liquid Storage Tank
Designed for stationary storage, available in a variety of capacities, sizes, and specific gravity ratings
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

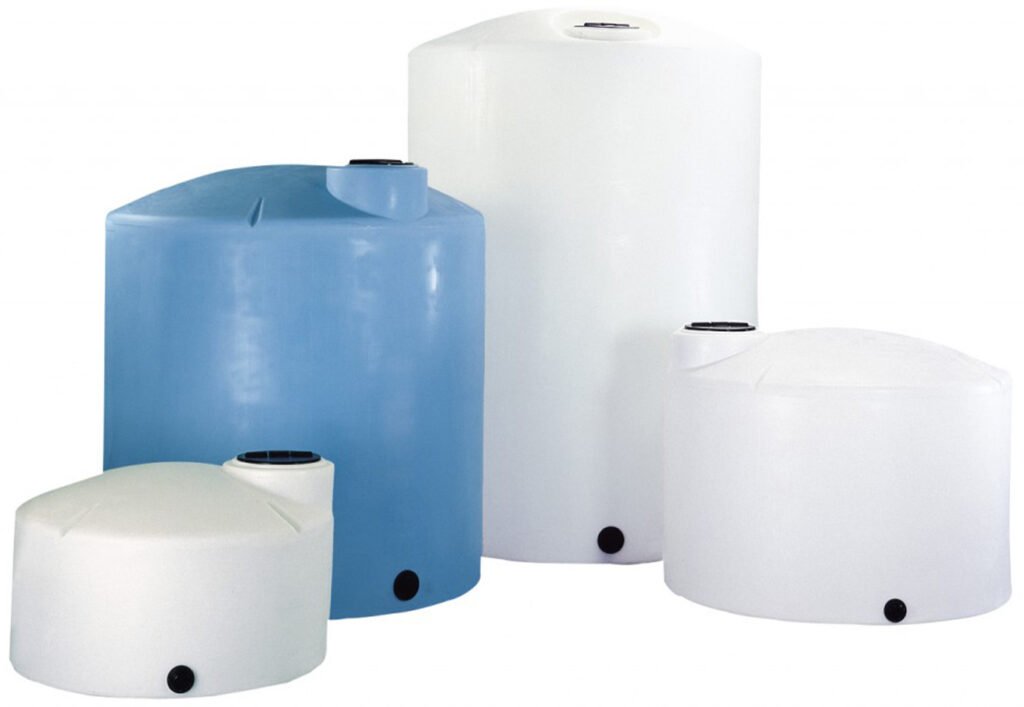

The Norwesco Vertical Liquid Storage Tank is designed for use as stationary liquid storage. They are available in 10 to 20000 gallon capacities, in various sizes, and with specific gravity ratings of either 1.5 or 1.9 SG. These tanks feature one-piece construction with no seams or welds and have a high strength-to-weight ratio. The proprietary resins that are used produce rugged, impact-resistant, and corrosion-resistant tanks.
Overview and Features
Features
- 10 to 20000 gallons
- Premium Weight tanks are white and made to a specific gravity rating of 1.5
- Heavy Duty tanks are blue and made to a specific gravity rating of 1.9
- Comes standard with an outlet fitting and a vented lid
- UV-15 stabilized resin
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Tank Capacity | 10 gallon, 20 gallon, 22 gallon, 25 gallon, 40 gallon, 50 gallon, 55 gallon, 65 gallon, 75 gallon, 100 gallon, 105 gallon, 120 gallon, 130 gallon, 140 gallon, 150 gallon, 160 gallon, 165 gallon, 175 gallon, 200 gallon, 210 gallon, 220 gallon, 225 gallon, 250 gallon, 265 gallon, 300 gallon, 305 gallon, 310 gallon, 500 gallon, 525 gallon, 550 gallon, 750 gallon, 850 gallon, 1000 gallon, 1050 gallon, 1100 gallon, 1250 gallon, 1295 gallon, 1500 gallon, 1505 gallon, 1550 gallon, 1700 gallon, 2000 gallon, 2100 gallon, 2500 gallon, 3000 gallon, 3450 gallon, 4000 gallon, 4200 gallon, 4995 gallon, 5000 gallon, 6000 gallon, 6100 gallon, 6500 gallon, 6502 gallon, 7800 gallon, 8400 gallon, 9000 gallon, 10000 gallon, 10500 gallon, 11000 gallon, 12000 gallon, 13000 gallon, 15000 gallon, 15500 gallon, 20000 gallon |
|---|---|
| Specific Gravity Rating | 1.5 SG, premium weight (white), 1.9 SG, heavy weight (blue) |
| Dimensions (Diameter x Height) | 12" x 26", 16" x 28", 20" x 20", 18" x 29", 18" x 42", 18" x 53", 18" x 44" (Square), 23" x 43", 23" x 49", 23" x 50", 23" x 63", 28" x 43", 28" x 54", 38" x 31", 32" x 45", 32" x 46", 25" x 73", 30" x 56", 28" x 69", 31" x 56", 30" x 64", 31" x 60", 30" x 72", 31" x 69", 35" x 59", 32" x 67", 42" x 44", 31" x 77", 30" x 89", 31" x 86", 35" x 68", 31" x 91", 35" x 79", 35" x 78", 35" x 86", 42" x 58", 46" x 50", 32" x 94", 48" x 73", 48" x 68", 46" x 78", 67" x 44", 46" x 107", 48" x 103", 48" x 118", 64" x 80", 64" x 81", 72" x 66", 48" x 134", 87" x 53", 60" x 114", 84" x 64", 64" x 116", 93" x 60", 60" x 135", 87" x 67", 87" x 74", 64" x 152", 64" x 157", 90" x 84", 93" x 80", 87" x 89", 102" x 69", 95" x 91", 96" x 96", 98" x 86", 102" x 79", 95" x 109", 98" x 101", 102" x 93", 96" x 120", 102" x 125", 102" x 131", 142" x 89", 102" x 152", 119" x 112", 141" x 86", 102" x 182", 119" x 140", 119" x 150", 120" x 147", 102" x 196", 119" x 176", 119" x 188", 120" x 187", 141" x 146", 141" x 160", 130" x 202", 144" x 167", 141" x 193", 144" x 198", 165" x 186", 141" x 244", 165" x 242" |
| Fill Opening / Outlet Specifications | 8” fill opening, 3/4” polypropylene outlet fitting, 5” fill opening, 3/4” polypropylene outlet fitting, 8” fill opening, 1-1/4” polypropylene outlet fitting, 5” fill opening, 1-1/4” polypropylene outlet fitting, 8” fill opening, 2” polypropylene outlet fitting, 8” fill opening, 2” polypropylene outlet fitting + siphon tube, 16” fill opening, 2” polypropylene outlet fitting, 16” fill opening, 2” polypropylene outlet fitting + siphon tube, 16” fill opening with gusset top, 2” polypropylene outlet fitting + siphon tube, 22” fill opening, 2” polypropylene outlet fitting + siphon tube, 16” fill opening, 3” polypropylene outlet fitting + 2" reducer + siphon tube, 22” fill opening, 3” polypropylene outlet fitting + 2" reducer + siphon tube, 16" fill opening, 3" polypropylene outlet fitting + 2" reducer + siphon tube, 22" fill opening, 3" polypropylene outlet fitting + 2" reducer + siphon tube, 22" fill opening, 3" stainless steel outlet fitting + siphon tube, 22" fill opening, 3" stainless steel outlet fitting + long bolts + siphon tube |
