Norwesco
Norwesco Horizontal Leg Storage Tank
35 to 6025 gallon tanks designed specifically for heavy duty transport applications, available in 1.5 and 1.9 SG
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

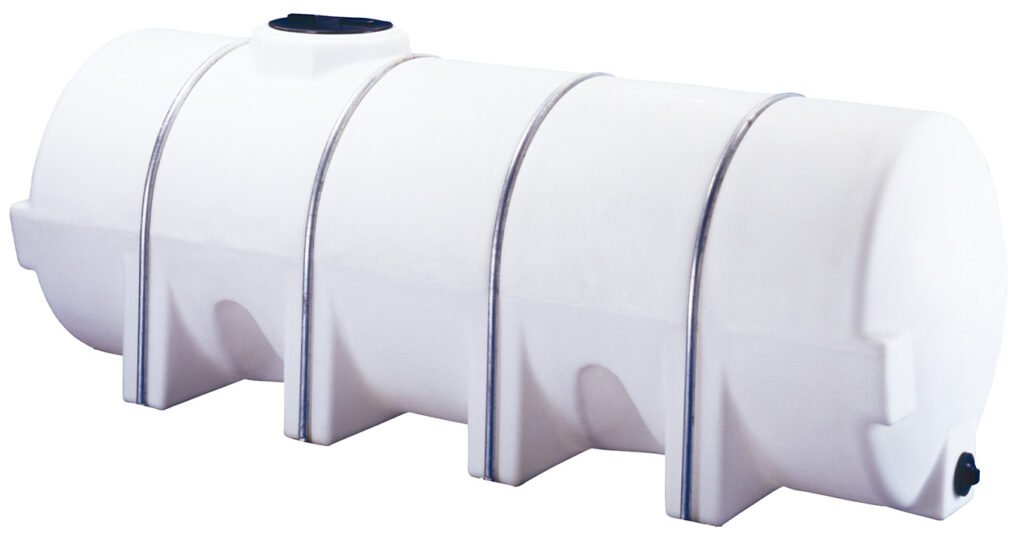

The Norwesco Horizontal Leg Storage Tank is designed specifically for heavy-duty transport applications. They are secured with a band system that provides a safe, secure, and long lifespan tank. The bands control the inherent flex of polyethylene and maintain the tank’s shape. The molded-in legs also act as a baffle to reduce sloshing of the liquid within the tank.
Overview and Features
Features
- 35 to 6025 gallon capacities available
- 1.5 and 1.9 SG options
- Molded-in legs
Note: Bands are required for each tank and can be purchased separately
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Tank Capacity | 35 gallon, 55 gallon, 65 gallon, 125 gallon, 150 gallon, 225 gallon, 325 gallon, 425 gallon, 525 gallon, 725 gallon, 925 gallon, 925 gallon with sump, 1025 gallon, 1325 gallon, 1625 gallon, 1800 gallon (two 900 gallon tanks), 1800 gallon with sump (two 900 gallon tanks), 3725 gallon, 5025 gallon, 6025 gallon with baffles |
|---|---|
| Specific Gravity Rating and Tank Color | 1.5 SG, white, 1.9 SG, blue |
| Dimensions (Diameter x Height X Length) | 20" x 23" x 29", 23" x 26" x 34", 23" x 26" x 43", 32" x 35" x 41", 34" x 36" x 43", 38" x 41" x 49", 38" x 43" x 68", 49" x 54" x 60", 49" x 54" x 71", 49" x 54" x 101", 62" x 65" x 80", 62" x 69" x 80", 49" x 54" x 139", 66" x 70" x 99", 63" x 68" x 139", 62" x 68" x 146", 62" x 72" x 146", 92" x 96" x 190", 99" x 103" x 193" |
| Fill Opening / Outlet Specifications | 5” fill opening, 3/4” polypropylene fitting, 8” fill opening, 2” polypropylene fitting with siphon tube, 5” fill opening, 2” bottom fitting, 16” fill opening, 2” polypropylene fitting with siphon tube, 8” fill opening, No fitting, 16” fill opening (hinged lid), 3” polypropylene fitting with 2” reducer and siphon tube, 22” fill opening (hinged lid), 3” polypropylene fitting with 2” reducer and siphon tube |
