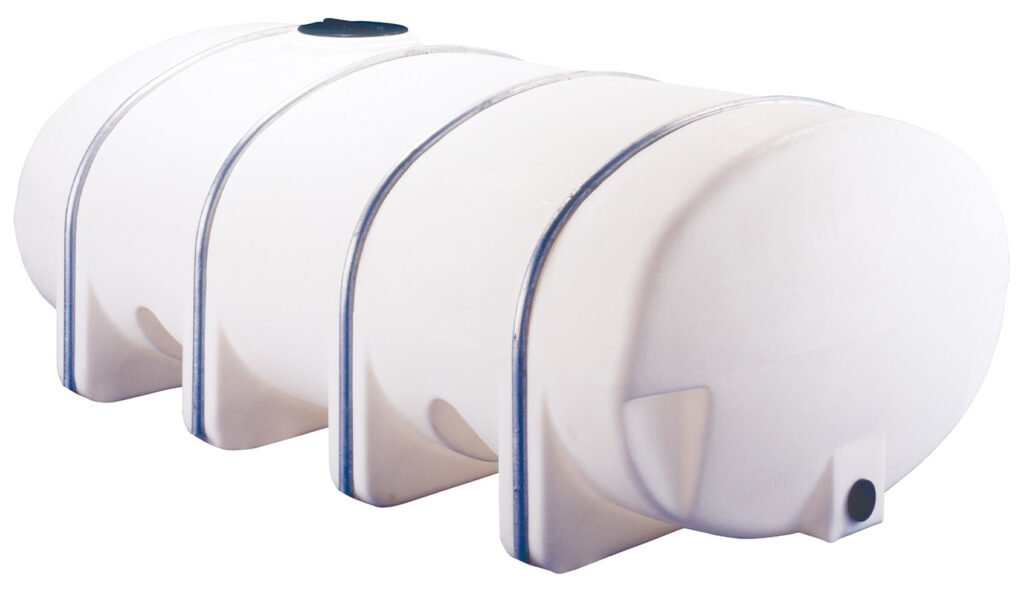

Norwesco Elliptical Leg Storage Tank
Lower center of gravity to capacity ratio tank designed specifically for heavy duty transport applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Norwesco Elliptical Leg Storage Tank is designed to provide maximum capacity with the lowest center of gravity, making it ideal for transporting larger volumes. Norwesco elliptical tanks feature molded-in legs that act as “baffles” to reduce sloshing and provide increased stability during transport. The 2650 and 3250 gallon models include an internal baffle system.
All Norwesco elliptical leg tanks require full length bottom support as well as support bands.
Overview and Features
Features
- 135 to 4035 gallon capacities
- 1.5 and 1.9 SG options available
Note: Bands are required for each tank and can be purchased separately
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Tank Capacity | 135 gallon, 235 gallon, 335 gallon, 535 gallon, 1035 gallon, 1235 gallon, 1335 gallon, 1635 gallon, 2035 gallon, 2635 gallon, 2650 gallon (with baffles), 3135 gallon, 3250 gallon (with baffles), 4035 gallon |
|---|---|
| Specific Gravity Rating and Tank Color | 1.5 SG, white, 1.5 SG, black, 1.9 SG, blue, 1.9 SG, black |
| Dimensions (Width x Height X Length) | 36" x 26" x 56", 40" x 32" x 66", 48" x 33" x 71", 57" x 39" x 80", 79" x 54" x 89", 66" x 53" x 128", 66" x 55" x 126", 71" x 58" x 142", 84" x 56" x 142", 90" x 72" x 140", 88" x 82" x 122", 88" x 80" x 150", 88" x 82" x 152", 92" x 75" x 192" |
| Fill Opening / Outlet Specifications | 8” fill opening, 1-1/4” polypropylene fitting, 8” fill opening, 2” polypropylene fitting with siphon tube, 16” fill opening, 2” polypropylene fitting with siphon tube, 16” fill opening, 3” polypropylene fitting with 2” reducer and siphon tube, 22” fill opening (hinged lid), 3” polypropylene fitting with 2” reducer and siphon tube, 16” fill opening (hinged lid), 3” polypropylene fitting with 2” reducer and siphon tube |
