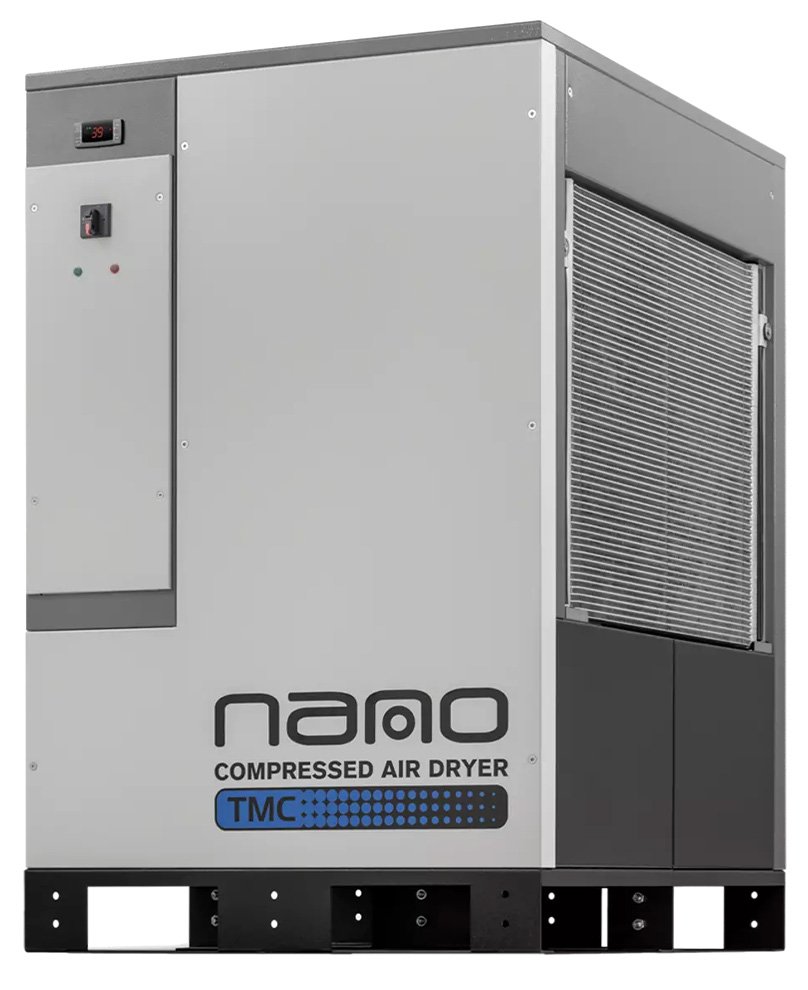

nano-purification solutions TMC Thermal Mass Cycling Refrigerated Air Dryer
30 to 635 SCFM, glycol thermal energy circuit, ISO 8573.1:2010 Class 5
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions TMC Thermal Mass Cycling Refrigerated Air Dryer utilizes a glycol thermal energy circuit to save energy and money by only running when needed to match the actual airflow. When the glycol thermal mass reaches a set temperature, the compressor stops or cycles off but continues to provide clean and dry compressed air, unlike direct expansion dryers which run continuously. The cold energy is stored in the glycol thermal mass, maintaining the dew point at the desired temperature. When the temperature of the thermal mass starts to rise, the refrigerant compressor cycles on.
Overview and Features
Features
- 30 to 635 SCFM
- 210 PSIG max operating pressure
- 140°F max inlet air temperature
- 115°F max ambient temperature
- ISO 8573.1:2010 Class 5
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 30 SCFM, 55 SCFM, 75 SCFM, 105 SCFM, 130 SCFM, 170 SCFM, 200 SCFM, 265 SCFM, 320 SCFM, 400 SCFM, 510 SCFM, 635 SCFM |
|---|---|
| Connection | 1/2" NPT, 1-1/4" NPT, 1-1/2" NPT, 2" NPT, 2-1/2" NPT |
| Voltage | 115/1/60, 230/1/60, 460/3/60 |
