nano-purification solutions
nano-purification solutions PF Culinary Steam Filter
Provides culinary grade steam for food and beverage applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

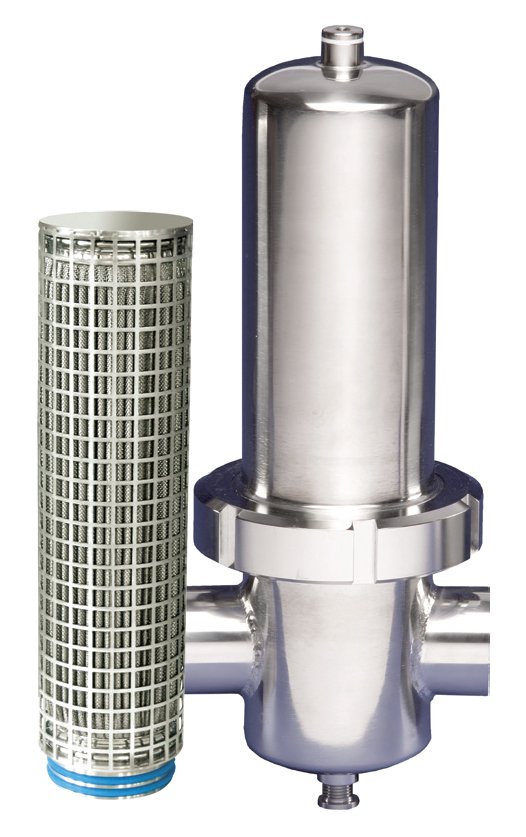

The nano-purification solutions PF Culinary Steam Filter is constructed of materials that all conform to FDA regulations for direct food contact, and the unit exceeds 3A culinary specifications. The unit is ideally suited for removing contaminants from steam used in food and beverage processing. The pleated stainless steel element incorporates a positive double O-ring click-lock seal, and is 100% integrity tested. The unit’s stainless steel housing is fabricated from polished 304 stainless steel for critical air and gas applications.
Applications
- Food processing
- Beverage
- Dairy
- Biotechnology
- Aseptic processing
Overview and Features
Features
- 125 to 4,250 lbs/hr (28 to 944 SCFM) capacity
- 1/2 to 3″ NPT connection
- 232 PSIG pressure rating
- 1/4″ BSPP drain and vent connections
- 1.4301 quality 304 stainless steel filter housing material
- 1 micron particle removal
- 99% particle removal efficiency
- 212 to 392°F continuous operating temperature range
- 1.0 PSID clean differential pressure
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 125 lbs/hr (28 SCFM), 300 lbs/hr (67 SCFM), 500 lbs/hr (111 SCFM), 1,500 lbs/hr (333 SCFM), 2,600 lbs/hr (578 SCFM), 4,250 lbs/hr (944 SCFM) |
|---|---|
| Connection | 1/2" NPT, 3/4" NPT, 1" NPT, 2" NPT, 2 1/2" NPT, 3" NPT |
