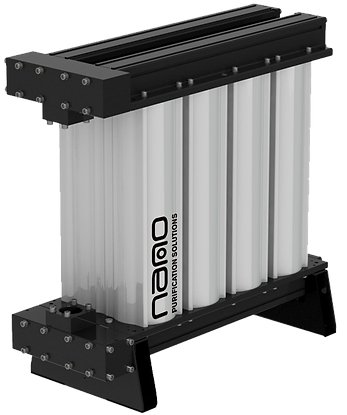

nano-purification solutions NVR Oil Vapor Removal Dryer
Reduces residual oil content to lower than 0.003 mg/m3 at 95°F and 100 PSIG inlet pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions NVR Oil Vapor Removal Dryer uses activated carbon towers to reduce oil vapor and odor from any compressed air system. When matched to inlet conditions, the unit delivers air quality to ISO 8573-1 (class 1 for oil). The dryer system is manufactured from high quality extruded aluminum, and the modular design maintains effective operation for air quality for a minimum of 12 months’ operation.
The dryer utilizes an adsorbent filled activated carbon cartridge, complete with integral diffusers and a built-in 1 micron dust filter as standard, eliminating the need for external downstream filtration. The unit can be installed in the compressor room or at the point of use to protect critical applications and personnel. The dryer is snowstorm filled.
Overview and Features
Features
- 40 to 1,500 SCFM capacity
- 1/2″ to 2 1/2″ NPT
- 232 PSIG pressure rating
- 122°F maximum operating temperature
- 12 month estimated cartridge life
- Inlet air quality requirements:
- 0.01 micron maximum particulate size
- -40°F maximum pressure dew point
- 0.05 mg/m3 maximum oil content
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 40 SCFM, 185 SCFM, 370 SCFM, 750 SCFM, 1,100 SCFM, 1,500 SCFM |
|---|---|
| Connection | 1/2" NPT, 1" NPT, 2 1/2" NPT |
