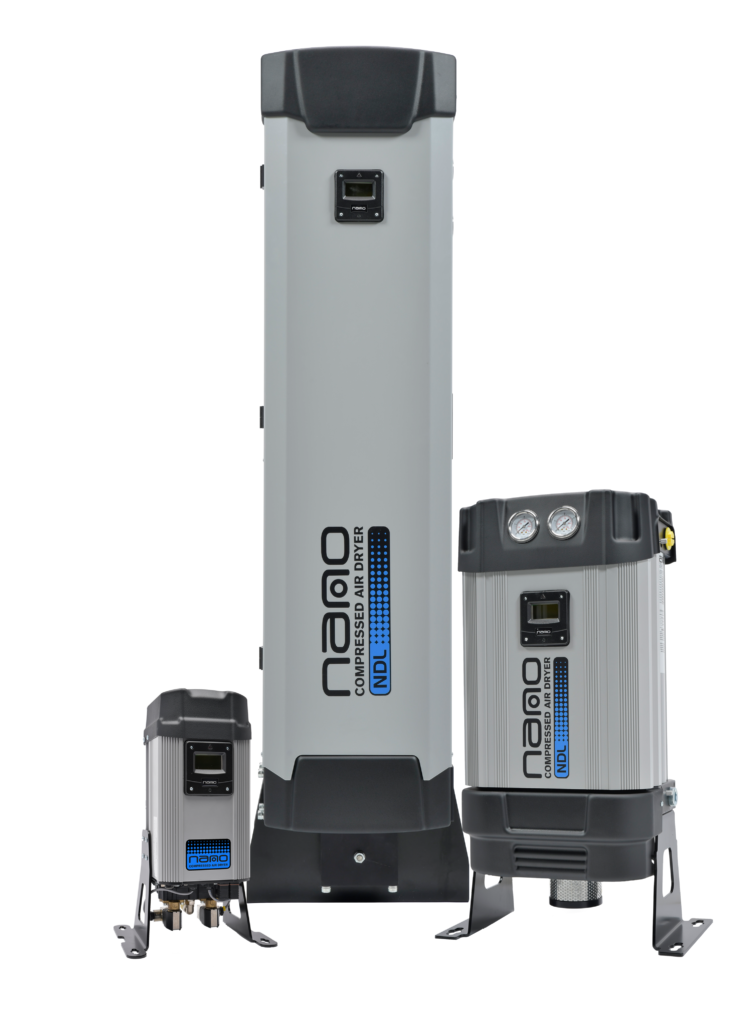

nano-purification solutions NDL Modular Desiccant Air Dryer
Provides air purity in accordance with ISO8573:1 - 2010, Class 2 dirt (1 micron) and Class 2 water (-40°F pdp)
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions NDL Modular Desiccant Air Dryer is a snowstorm filled, ultra-high purity dryer that provides moisture and particulate protection to an air compression system. It is designed for use in the compressor room, at the point of application or integrated into original equipment. The unit operates with PLC controlled solenoid valves and unique exhaust air silencers, reducing noise levels. A digital display provides a full view of PLC operation and monitoring data.
3 to 24 SCFM packages include mounting brackets for either floor or wall mounting. This packages also include an inlet water separator to eliminate the cost and pressure drop of installing a separate inlet filter in small oil-free compressor applications. The built in outlet filtration, standard for all models, eliminates the cost, pressure drop and maintenance associated with a separate after filter. D1 and D2 packages also include easily replaceable cartridges.
The PLC control system includes ‘power on,’ ‘hours run,’ and ‘service required’ indicators. Memory retention built into the PLC enables the controller to pick up where it left off in the drying cycle, ensuring consistently clean and dry air downstream. Compressor synchronization is a standard energy saving feature, which starts and stops the dryer with a signal from the compressor or point-of-use equipment to eliminate purge loss when drying is not required.
A low dew point (-94°F) model is available, along with a pneumatic model for the D2 and D3 ranges, offering full pneumatic control of the pressure swing adsorption technology for intrinsically safe applications.
Overview and Features
Features
- 2 to 1110 SCFM capacity
- Maximum working pressure:
- 232 PSIG (3 to 177 SCFM)
- 145 PSIG (212 to 1110 SCFM)
- 3/8″ to 2 1/2″ NPT inlet/outlet connection
- 145°F or 232° pressure rating
- 100 to 240 VAC / 50 or 60Hz power supply requirements
- Integrated after filter standard
- Optional low dew point (-94°F) and pneumatic models available
- Energy saving dew point control option available
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Model | Standard, Low dew point (-94°F), Pneumatic control |
|---|---|
| Capacity | 3 SCFM, 5 SCFM, 10 SCFM, 15 SCFM, 20 SCFM, 34 SCFM, 41 SCFM, 53 SCFM, 66 SCFM, 88 SCFM, 106 SCFM, 132 SCFM, 177 SCFM, 212 SCFM, 276 SCFM, 400 SCFM, 560 SCFM, 750 SCFM, 828 SCFM, 1110 SCFM, 2 SCFM, 7 SCFM, 14 SCFM, 23 SCFM, 28 SCFM, 37 SCFM, 46 SCFM, 61 SCFM, 74 SCFM, 92 SCFM, 124 SCFM, 148 SCFM, 193 SCFM, 280 SCFM, 392 SCFM, 525 SCFM, 580 SCFM, 777 SCFM |
| Max Pressure | 232 PSIG, 145 PSIG |
| Connection | 3/8" NPT, 1/2" NPT, 1" NPT, 2" NPT, 2 1/2" NPT, 2 1/2" NPT (dryer line) | 3" NPT (filter connection) |
| Outlet Dew Point Control | None, Add energy saving outlet dew point control and display |
