nano-purification solutions NDC Lab Gas CO2 Removal Air Dryer
Designed for laboratory applications including FTIR purge, TOC purge, NMR, GC flame gas and laser purging
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

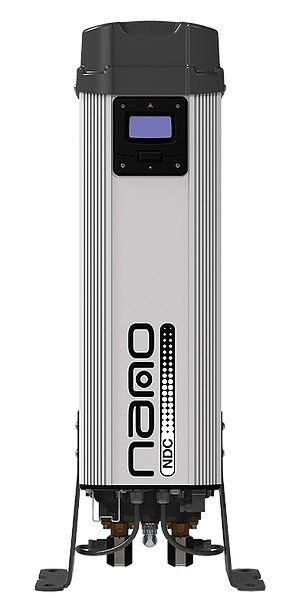

The nano-purification solutions NDC Lab Gas CO2 Removal Air Dryer generates an in-house supply of purge gas when connected to an existing compressed air system, cleaning and drying the air while removing CO2. The constant supply of high air purity eliminates interruption of analyses to change cylinders, and reduces instrument recalibration and safety concerns associated with high pressure oxygen and nitrogen cylinders. Developed for laboratories, the unit requires no bench space, can be wall mounted and ensures quiet operation via a novel exhaust silencer.
The dryer uses pressure swing adsorption (PSA) technology, featuring automatic regeneration and advanced purification cartridges with snowstorm filled adsorbent, containing integrated 1.0 micron post filtration with an additional Nano F1 high efficiency pre-filter, rated for 0.01 micron and 0.01ppm oil carryover.
Overview and Features
Features
- Capacity:
- 5.3 to 424 ft3/h inlet air
- 3.2 to 254 ft3/h outlet gas
- Connection:
- 3/8″ to 1/2″ PTC
- 1″ NPT
- Pressure:
- 145 PSIG (3.2 to 64 ft3/h inlet air options)
- 174 PSIG (127 to 254 ft3/h inlet air options)
- 100-240/60 voltage
- -94°F pdp maximum
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Inlet Air Capacity | 5.3 ft3/h, 17.6 ft3/h, 53 ft3/h, 106 ft3/h, 212 ft3/h, 318 ft3/h, 424 ft3/h |
|---|---|
| Outlet Gas Capacity | 3.2 ft3/hr, 10.6 ft3/hr, 32 ft3/hr, 64 ft3/hr, 127 ft3/hr, 191 ft3/hr, 254 ft3/hr |
| Connection | 3/8" PTC, 1/2" PTC, 1" NPT |
