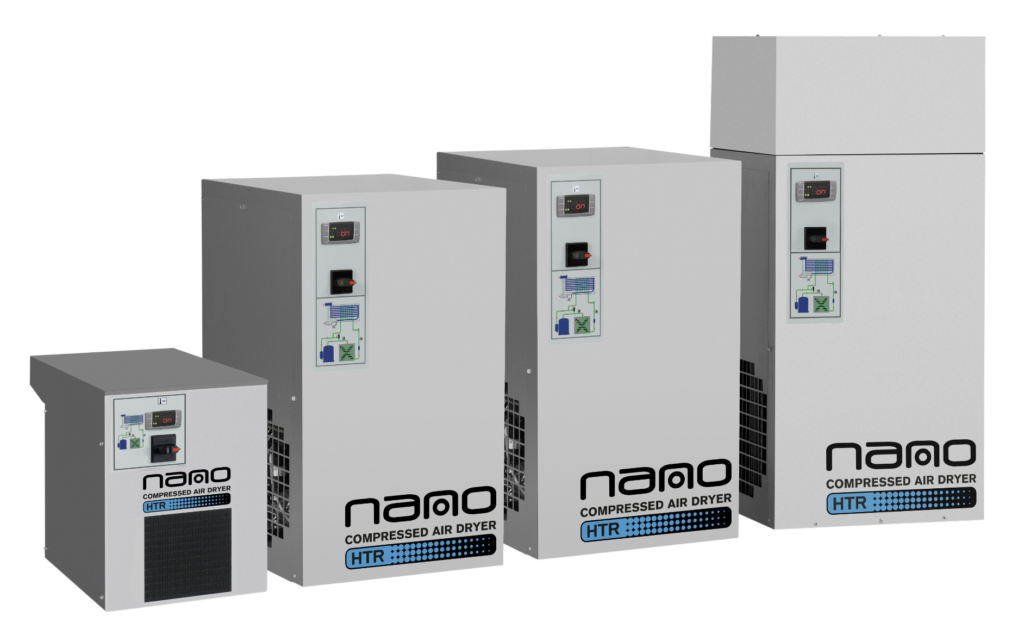

nano-purification solutions HTR High Temperature Refrigerated Air Dryer
Provides clean, dry compressed air for the unique demands of high temperature compressed air applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Overview and Features
Features
- 180°F maximum inlet temperature
- 120°F maximum ambient temperature
- 25 to 125 SCFM capacity
- 3/4 to 1″ NPT inlet/outlet connection
- 0.47 to 2.4 kW absorbed power
- M1 (1 micron) pre filter included
- 232 PSIG pressure rating
- Zero air loss condensate drain included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 25 SCFM, 50 SCFM, 75 SCFM, 100 SCFM, 125 SCFM |
|---|---|
| Connection | 3/4" NPT (M), 1/2" NPT (F), 3/4" NPT (F), 1" NPT (F) |
| Voltage | 115/1/60 |
| Absorbed Power | 0.47 kW, 1 kW, 2.02 kW, 1.93 kW, 2.4 kW |
