nano-purification solutions

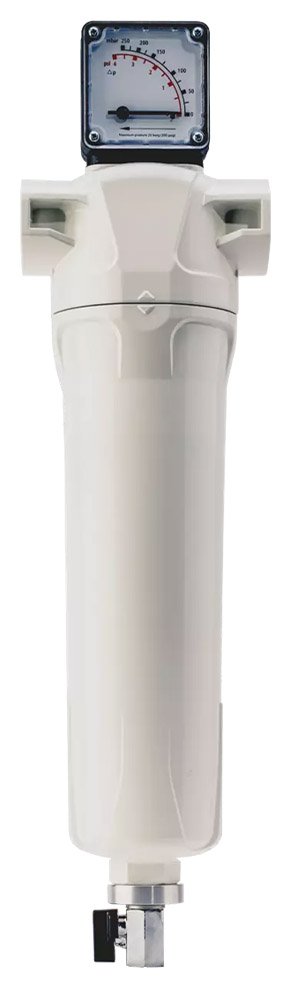

nano-purification solutions GMV Medical Vacuum Filter
Eliminates solid, liquid, and bacterial contamination from medical vacuum systems
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions GMV Medical Vacuum Filter prevents damage to vacuum pumps and potentially hazardous biological contagions from being exhausted into the surrounding environment. Designed for use in critical medical applications to remove solid, liquid, and bacterial contamination in vacuum systems.
Overview and Features
Features
- 2 to 331 SCFM rated airflow
- 1 to 125 SCFM free air aspirated flow
- Cast aluminum alloy housing
- 10 year housing warranty
- Meets ISO 7396-1, HTM 02-01 and 2018 revision of NFPA (5.1.3.7.4)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Rated Air Flow | 2 SCFM, 4 SCFM, 10 SCFM, 18 SCFM, 22 SCFM, 26 SCFM, 45 SCFM, 89 SCFM, 98 SCFM, 103 SCFM, 145 SCFM, 246 SCFM, 280 SCFM, 313 SCFM, 331 SCFM |
|---|---|
| Connection | 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1 1/4" NPT, 1 1/2" NPT, 2" NPT, 2 1/2" NPT, 3" NPT |
