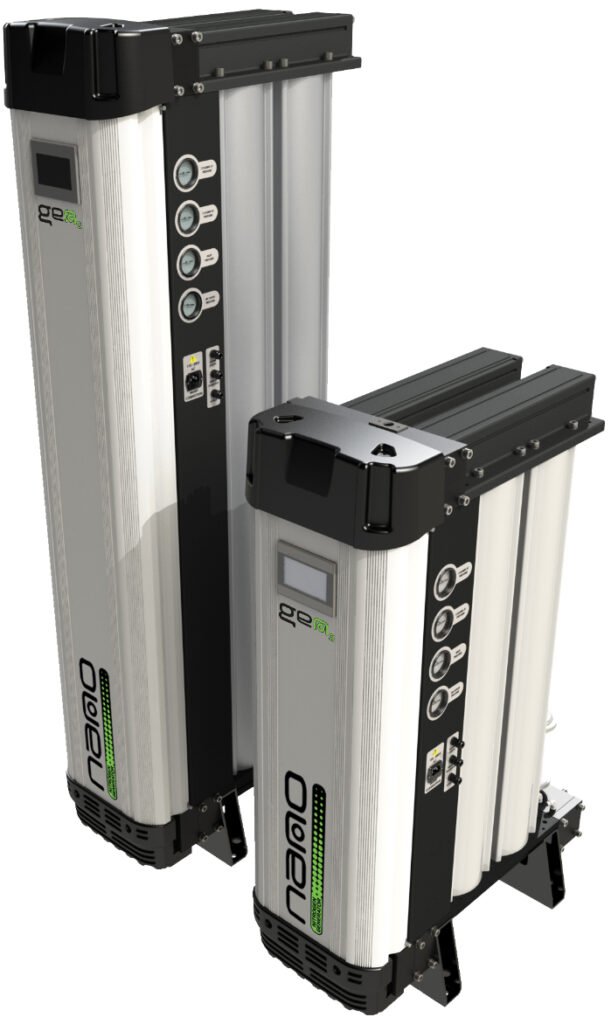

nano-purification solutions GEN2 Plus Nitrogen Generator
Designed for higher purity applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions GEN2 Plus Nitrogen Generator adds an integrated regenerative dryer cartridge, eliminating the need for a separate desiccant dryer. This significantly reduces purge loss and pressure drop while allowing for higher outlet purity levels.
Overview and Features
Features
- 28 to 764 SCFH capacity at 99.9999% nitrogen purity
- 87 to 145psig design operating pressure range
- 41 to 122°F design operating temperature range
- 0.1 micron maximum inlet particulate
- 80°F PDP maximum inlet dew point
- 0.01ppm maximum inlet oil content
- 100 to 240 VAC supply voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 28 SCFH, 55 SCFH, 83 SCFH, 143 SCFH, 215 SCFH, 286 SCFH, 429 SCFH, 572 SCFH, 658 SCFH, 764 SCFH |
|---|
