nano-purification solutions

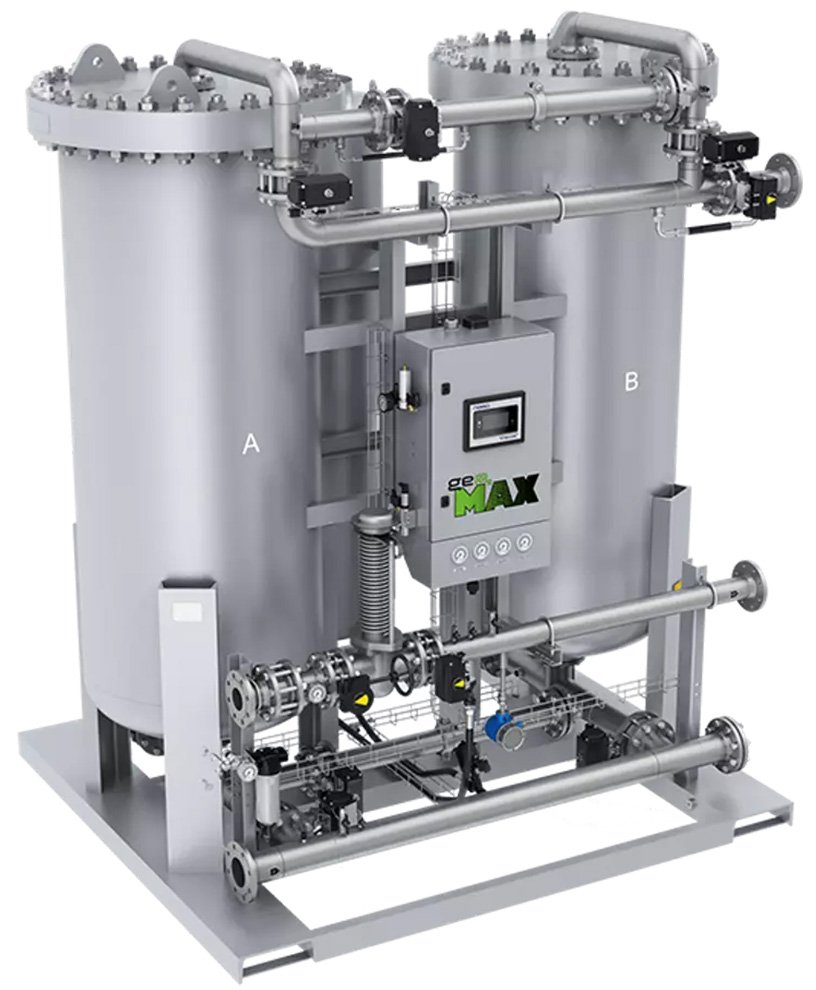

nano-purification solutions GEN2-MAX Nitrogen Generator
High capacity nitrogen gas generator with a purity level of 95% to 99.999% from compressed air
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions GEN2-MAX Nitrogen Generator produces ultra-high purity nitrogen gas in-house, with safety, simplicity, and energy efficiency being our top priorities. The GEN2-MAX delivers greater energy efficiency and cost savings with refined controls and lower air consumption. The GEN2-MAX comes equipped with purity sensors, a flow meter, and a flow control valve, providing a complete solution for your nitrogen gas requirements.
Overview and Features
Features
- 95% to 99.999% purity level
- 72.5 to 174 PSIG operating pressure range
- 0.1 micron maximum inlet particulate
- 45°F PDP max inlet dew point
- 37.4°F recommended inlet dew point
- 0.01 ppm max inlet oil content
- 100 – 240 VAC supply voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 1620 SCFH, 2037 SCFH, 2520 SCFH, 3240 SCFH, 3960 SCFH, 4500 SCFH, 5460 SCFH, 6540 SCFH, 8220 SCFH, 10440 SCFH, 13260 SCFH |
|---|
