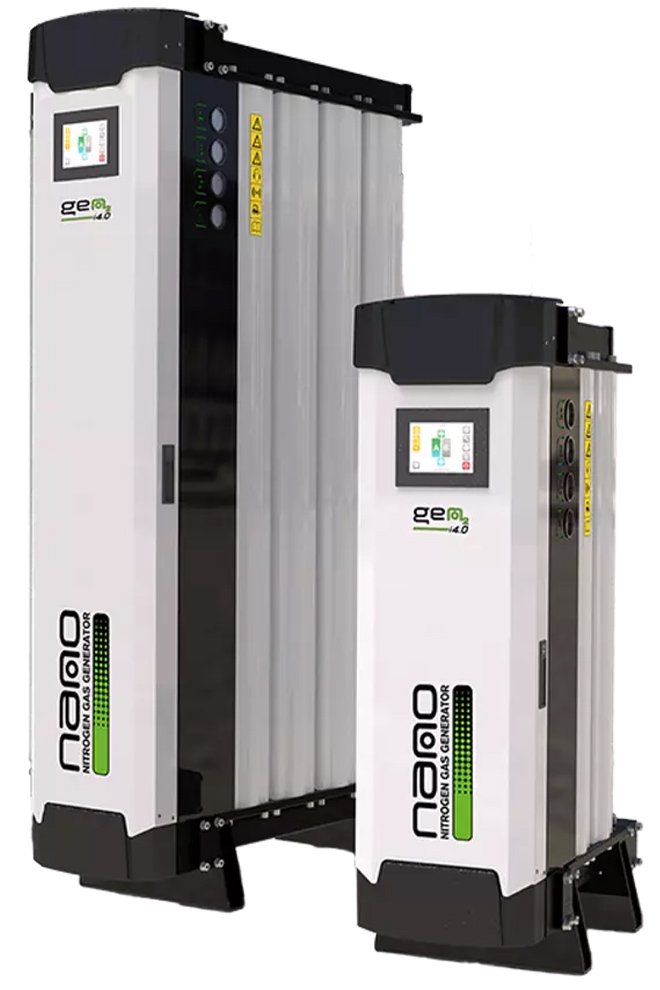

nano-purification solutions GEN2 i 4.0 Nitrogen Generator
Ultra-high purity nitrogen gas generator with a purity level of 95% to 98% from compressed air
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions GEN2 i 4.0 Nitrogen Generator uses an extruded aluminum modular design and operates on the pressure swing adsorption (PSA) principle to produce a continuous uninterrupted stream of nitrogen gas from clean dry compressed air with a 95% to 98% purity level.
Overview and Features
Features
- 95% to 98% purity level
- 87 to 174 PSIG operating pressure range
- 0.1 micron maximum inlet particulate
- 38°F PDP max inlet dew point
- -40°F recommended inlet dew point
- 0.01 ppm max inlet oil content
- 100 – 240 VAC supply voltage
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 258 SCFH, 516 SCFH, 773 SCFH, 932 SCFH, 1398 SCFH, 1865 SCFH, 2797 SCFH, 3729 SCFH, 4289 SCFH, 4979 SCFH |
|---|
