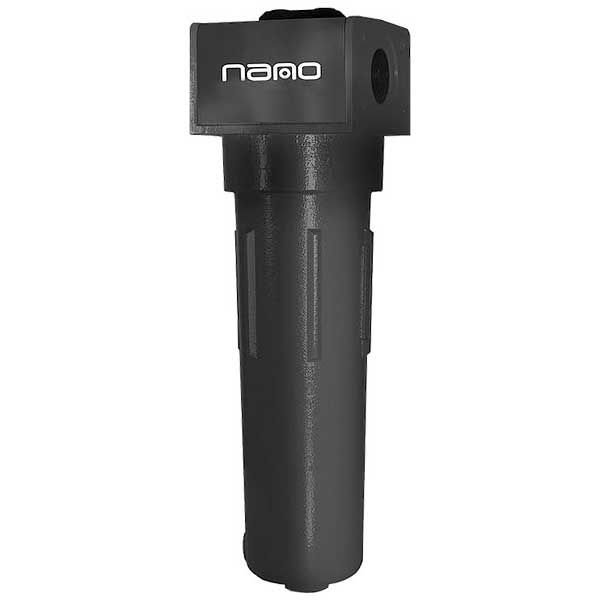

nano-purification solutions F3 Mid Pressure Process Filter
Machined and die cast aluminum housing material
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions F3 Mid Pressure Process Filter includes five different element grades including dust filtration and activated carbon, or 25, 5, 1, or 0.01 micron coalescing filtration. The E-Coat optimum corrosion protection is provided by an internal and external epoxy powder coating followed by an external tough polyester powder coat finish. The push-fit element design with dual O-ring seal ensures optimum sealing and mechanical strength. The unit is manufactured in an ISO 9001 approved facility and tested in accordance with ISO 8573-1:2010, and includes a hydrostatic test certificate and serial number for complete traceability.
Applications
- PET bottle manufacturing
- Offshore instrumentation
- Medical
- Heavy industrial
Overview and Features
Features
- 0 to 725 PSIG pressure rating
- 95 to 1,885 SCFM capacity
- 1/4″ to 2″ NPT
- Manual ball valve condensate drain included
- 0.01 to 25 micron particle removal options
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 95 SCFM, 150 SCFM, 265 SCFM, 325 SCFM, 490 SCFM, 735 SCFM, 1015 SCFM, 1132 SCFM, 1885 SCFM |
|---|---|
| Connection | 1/4" NPT, 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1 1/2" NPT, 2" NPT |
| Element Performance | 1 micron particle removal, 0.01 micron particle removal, 0.003ppm maximum oil carryover, 25ppm maximum oil carryover |
