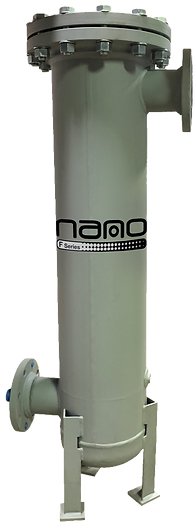

nano-purification solutions F2 High Capacity Flanged Filter
Removes liquid and particulates with low pressure drop for high flow industrial applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions F2 High Capacity Flanged Filter is a 1.0 and 0.1 micron particulate and coalescing filter for dust, oil and aerosol removal. It includes an AC activated carbon filter for vapor removal performance down to 0.003ppm, and is available in two flow configurations – “T” and “Z” – to fit every application. The unit is fabricated from carbon steel, externally primed and powder coated for optimum corrosion resistance, and built in accordance with ASME VIII with U-Stamp.
Applications
- Chemical
- Food and beverage
- Manufacturing
- Military
- Oil and gas
Overview and Features
Features
- “T” flow or “Z” flow options available
- Capacity:
- Z flow: 2,500 to 10,000 SCFM
- T flow: 1,700 to 10,000 SCFM
- 4″ to 10″ inlet/outlet flanged connection
- 150 PSIG pressure rating
- Automatic float condensate drain included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | "Z" flow, "T" flow |
|---|---|
| Capacity | 2,500 SCFM, 3,000 SCFM, 3,500 SCFM, 4,000 SCFM, 5,000 SCFM, 6,000 SCFM, 7,500 SCFM, 8,500 SCFM, 10,000 SCFM, 1,700 SCFM, 7,000 SCFM |
| Connection | 4" Flanged, 6" Flanged, 8" Flanged, 10" Flanged |
