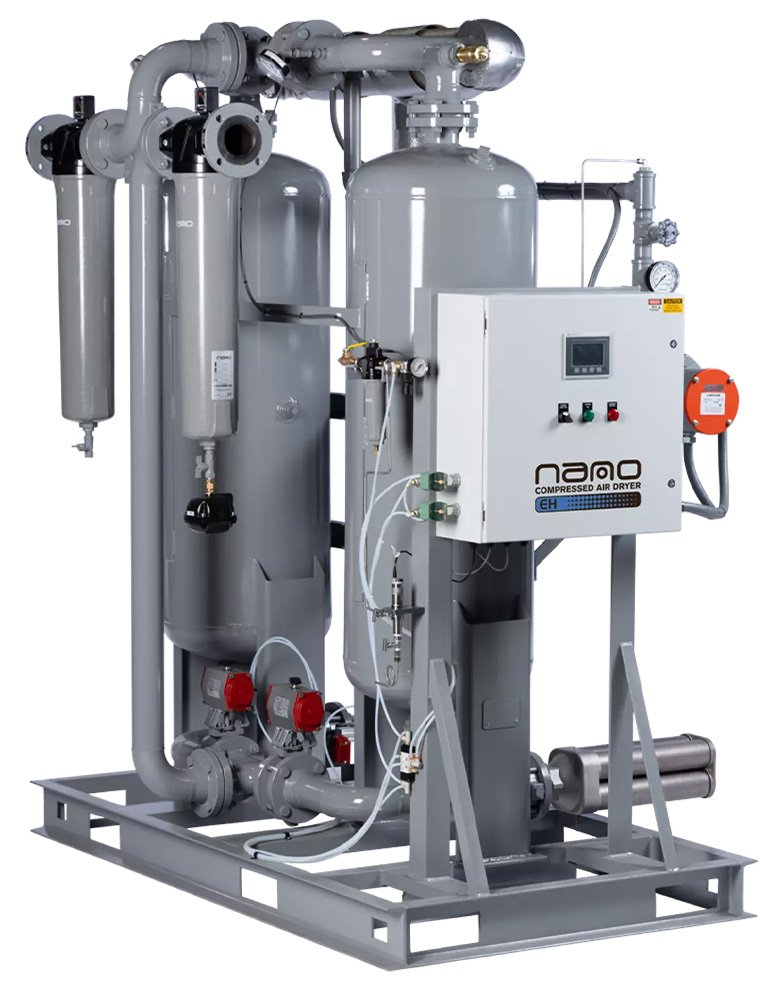

nano-purification solutions EH Series Externally Heated Twin Tower Desiccant Air Dryer
150 to 3000 SCFM, -40°F dewpoint standard, ISO 8573.1:2010 air quality
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions EH Series Externally Heated Twin Tower Desiccant Air Dryer is ideal for industries that require reliable, moisture-free compressed air. These high-performance dryers are designed to achieve a pressure dew point of -40°F, ensuring dry, clean air in the most demanding industrial environments. The nano EH Series reduces pressure drop while maintaining consistent dew point performance. By using only 6 to 8% of compressed air for purging, these dryers conserve valuable resources and help lower operational costs.
Overview and Features
Features
- 150 to 3000 SCFM
- Max operating pressure:
- EH 0150 to EH 1500: 180 PSIG
- EH 2000 to EH 3000: 135 PSIG
- 120°F max inlet air temperature
- Mounted pre-filter and after-filter standard
- 460/3/60 power supply standard, 575/3/60 optional
- ISO 8573.1:2010 air quality
- ASME code pressure vessels
- UL/cUL compliant
Tech Specs
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 150 SCFM, 250 SCFM, 350 SCFM, 500 SCFM, 750 SCFM, 1000 SCFM, 1250 SCFM, 1500 SCFM, 2000 SCFM, 2500 SCFM, 3000 SCFM |
|---|---|
| Filter Package | Pre- and After-Filters, 3V Bypass, 7V Bypass, Dual Filters + 8V Bypass, 9V Bypass |
| Inlet Filter Drains | NED Float (Standard), NED Electronic |
| Power Supply | 460/3/60 (Standard), 575/3/60 |
| Panel Rating | NEMA 4 (Standard), NEMA 4X |
| Control Air Tubing | PTFE (Standard), Stainless Steel |
| Low Ambient Package | None, (+20°F) Low Ambient |
| Tower Insulation | None, Add Tower Insulation |
| Corrosion Resistance | None, Add Corrosion Resistance |
