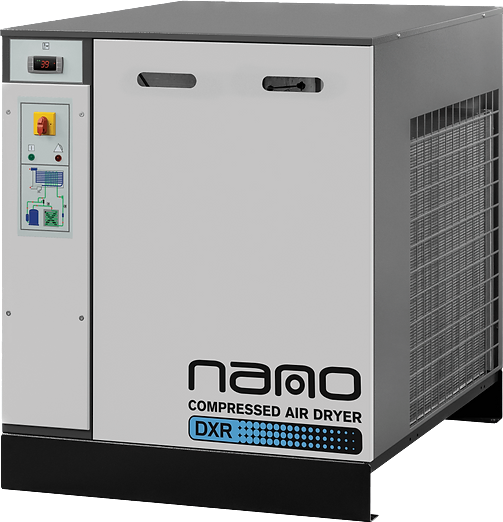

nano-purification solutions DXR Refrigerated Air Dryer
All-in-one heat exchanger with environmentally friendly refrigerants
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions DXR Refrigerated Air Dryer contains an all-in-one heat exchanger, standard zero air loss drain and environmentally friendly refrigerants.
Overview and Features
Features
- 10 to 4,200 SCFM capacity
- Inlet/outlet connection:
- 1/2 to 3″ NPT
- 4 to 6″ ANSI Flanged
- 0.2 to 17.1 kW absorbed power
- Voltage options:
- 115/1/60
- 230/1/60
- 460/3/60
- 575/3/60
- 232 or 203 PSIG pressure rating
- 131 or 140°F max inlet temperature
- 41°F to 114.8°F max ambient temperature
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 10 SCFM, 15 SCFM, 20 SCFM, 30 SCFM, 50 SCFM, 65 SCFM, 85 SCFM, 105 SCFM, 125 SCFM, 150 SCFM, 185 SCFM, 230 SCFM, 250 SCFM, 325 SCFM, 400 SCFM, 500 SCFM, 600 SCFM, 850 SCFM, 1,050 SCFM, 1,250 SCFM, 1,600 SCFM, 1,800 SCFM, 2,200 SCFM, 2,400 SCFM, 3,000 SCFM, 3,500 SCFM, 4,200 SCFM |
|---|---|
| Connection | 1/2" NPT (M), 3/4" NPT (M), 1" NPT (F), 1 1/2" NPT (F), 2" NPT (F), 3" NPT (M), 4" ANSI Flanged, 6" ANSI Flanged |
| Voltage | 115/1/60, 230/1/60, 460/3/60, 575/3/60 |
| Absorbed Power | 0.2 kW, 0.3 kW, 0.9 kW, 1.0 kW, 1.5 kW, 1.6 kW, 2.0 kW, 3.1 kW, 2.3 kW, 3.2 kW, 4.2 kW, 5.8 kW, 6.0 kW, 6.7 kW, 7.8 kW, 9.4 kW, 9.5 kW, 9.7 kW, 11.4 kW, 12.8 kW, 17.1 kW |
| Pressure | 0 to 232 PSIG, 60 to 203 PSIG |
