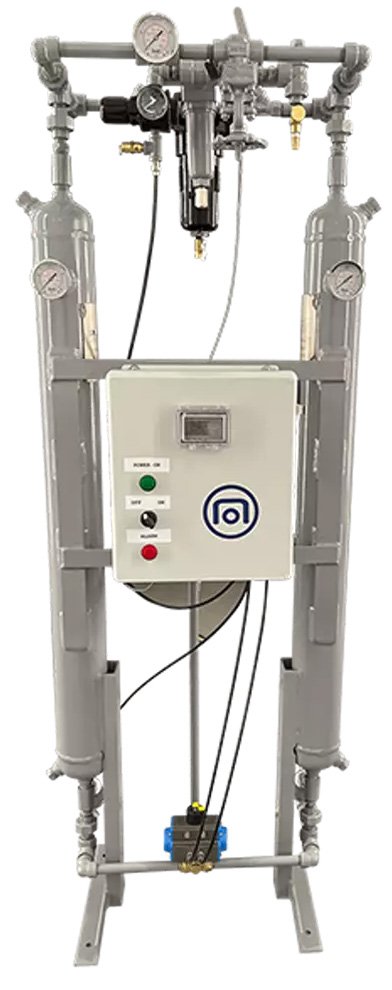

nano-purification solutions D5 High Pressure Heatless Twin Tower Desiccant Air Dryer
250, 500, or 700 PSIG pressure ratings, 30 to 2400 SCFM capacities
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The nano-purification solutions D5 High Pressure Heatless Twin Tower Desiccant Air Dryer uses expanded dry purge air to regenerate the offline bed. These simple yet effective dryers provide continuous uninterrupted clean dry air in a simple cost-effective and reliable package at elevated pressures.
Overview and Features
Features
- 30 to 2400 SCFM capacities
- 250, 500, or 700 PSIG pressure ratings
- 115/1/60 power supply
- Maximum particle size (ISO class): class 2 (1 micron)
- Maximum water content (ISO class): class 2 (-40°F PDP)
- 120°F max inlet air temperature
- UL/cUL compliant
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Inlet Pressure Rating | 250 PSIG, 500 PSIG, 700 PSIG |
|---|---|
| Capacity | 30 SCFM, 50 SCFM, 70 SCFM, 45 SCFM, 80 SCFM, 90 SCFM, 100 SCFM, 175 SCFM, 210 SCFM, 225 SCFM, 325 SCFM, 350 SCFM, 500 SCFM, 600 SCFM, 750 SCFM, 875 SCFM, 700 SCFM, 1000 SCFM, 1200 SCFM, 925 SCFM, 1350 SCFM, 1550 SCFM, 1150 SCFM, 1675 SCFM, 1950 SCFM, 1425 SCFM, 2100 SCFM, 2400 SCFM |
