nano-purification solutions BAP Breathing Air Dryer
Panel model, complies with OSHA Grade D (US) and CSA Z180.1-13 (Canada) breathing air standards
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

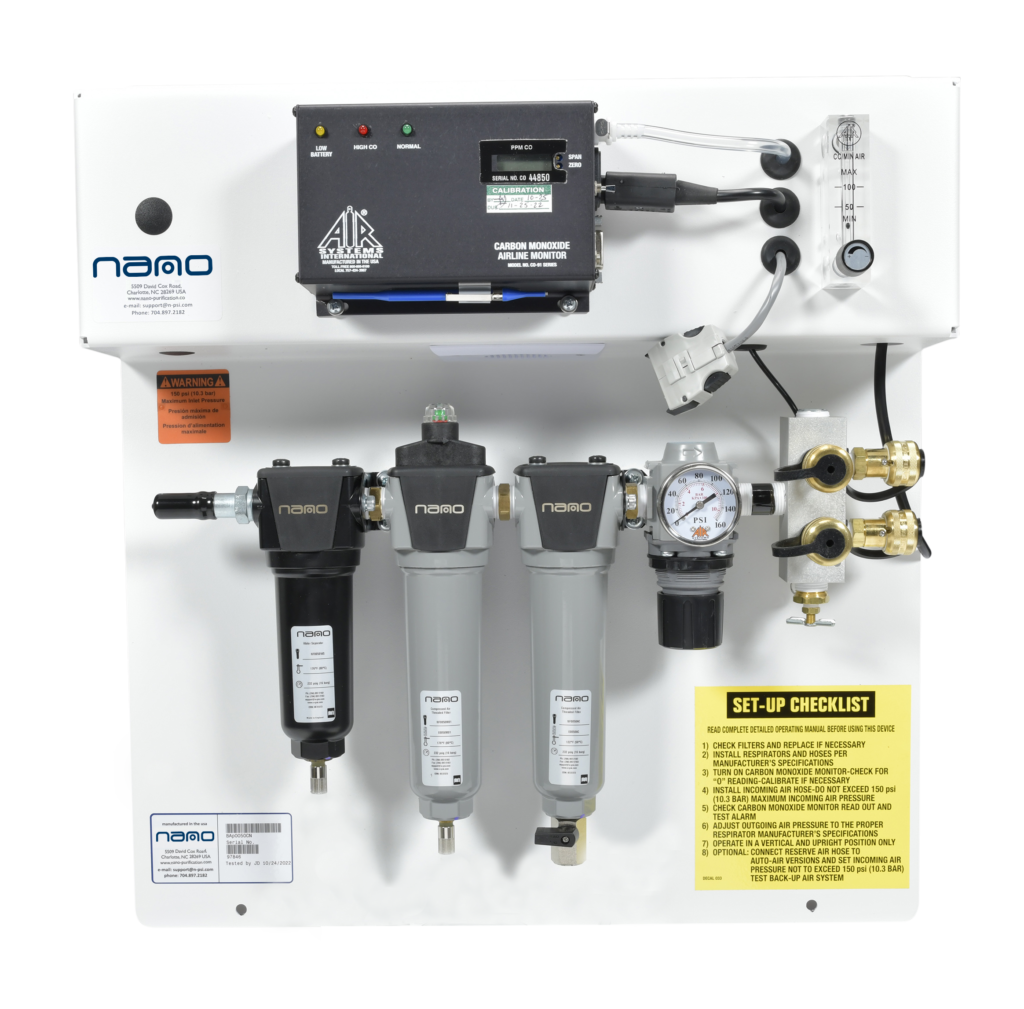

The nano-purification solutions BAP Breathing Air Purifier includes a Nano F1 water separator and 0.01 micron coalescing filter with automatic condensate drains and an AC activated carbon adsorber to remove moisture, oil aerosols, odors and taste to 0.003ppm. The panel can be mounted to a wall, skid, or any location that requires breathing air on a regular basis, such as a blasting or paint booth, a confined space, a hazardous area or a tank cleaning location. The unit is designed for one or more users who require a breathable air filtration system without portability requirements.
Overview and Features
Features
- 50, 100, or 175 CFM capacity
- Connections:
- 1/2in or 3/4in NPT inlet
- 3/8in NPT outlet
- Multiple outlet connections
- Adjustable pressure regulators
- Integral CO monitor
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 50 CFM, 100 CFM, 175 CFM |
|---|---|
| Connections | 1/2in NPT inlet; 3/8in NPT outlet, 3/4in NPT inlet; 3/8in NPT outlet |
