Michell Instruments Easidew Sampler
Sampling system designed for line pressure dew point measurement in compressed air and industrial gas applications
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

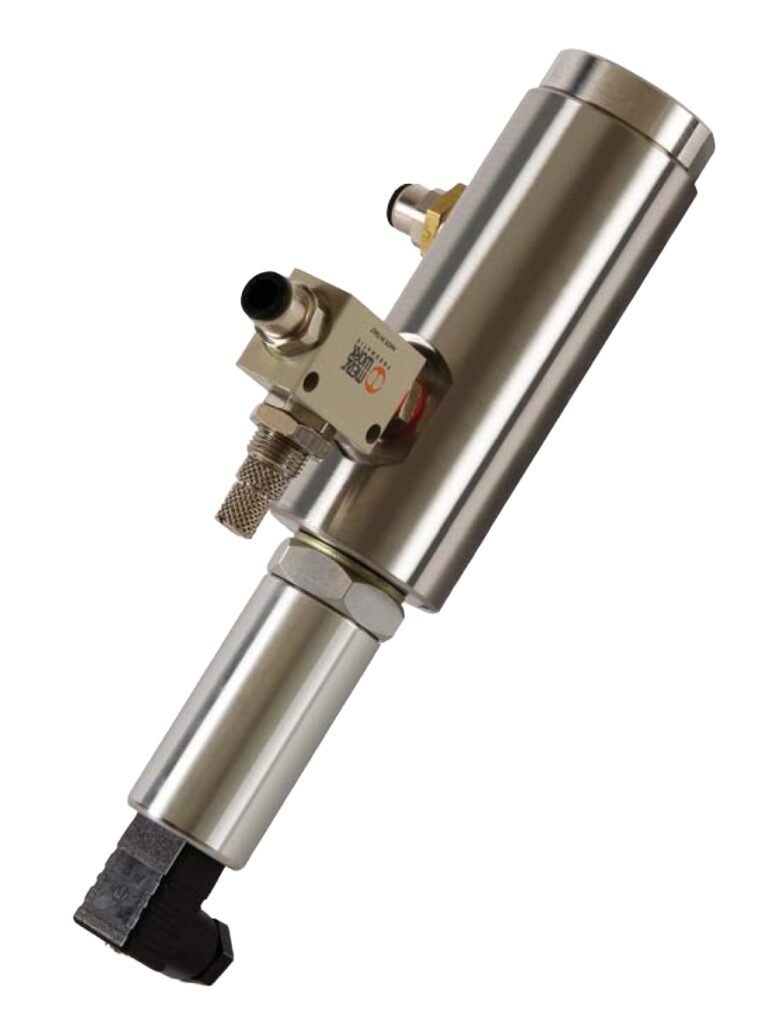

The Michell Instruments Easidew Sampler is designed for quick and accurate measurements of line pressure dew points in various compressed air and industrial gas applications. A flow control valve is outfitted by the factory to the outlet port which allows for the setting of the optimum gas flow between 1 and 5 litres per minute.
Overview and Features
Features
- Integral particulate filter (99.5% removal of 0.3μm)
- 1 to 5l/min (2.12 to 10.59scfh) gas flow rate
- 1 MPa operating pressure
- -40 to 140°F operating temperature range
- 5/8″ UNF process connection
- No inlet metering valve
- Outlet metering valve included
- 1/4in Swagelok tube fittings
- Materials:
- Block and Cap: 316 stainless steel
- Flow Control Block: Aluminium
- Couplings: Nickel-plated brass
- IP66 (NEMA 4)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
