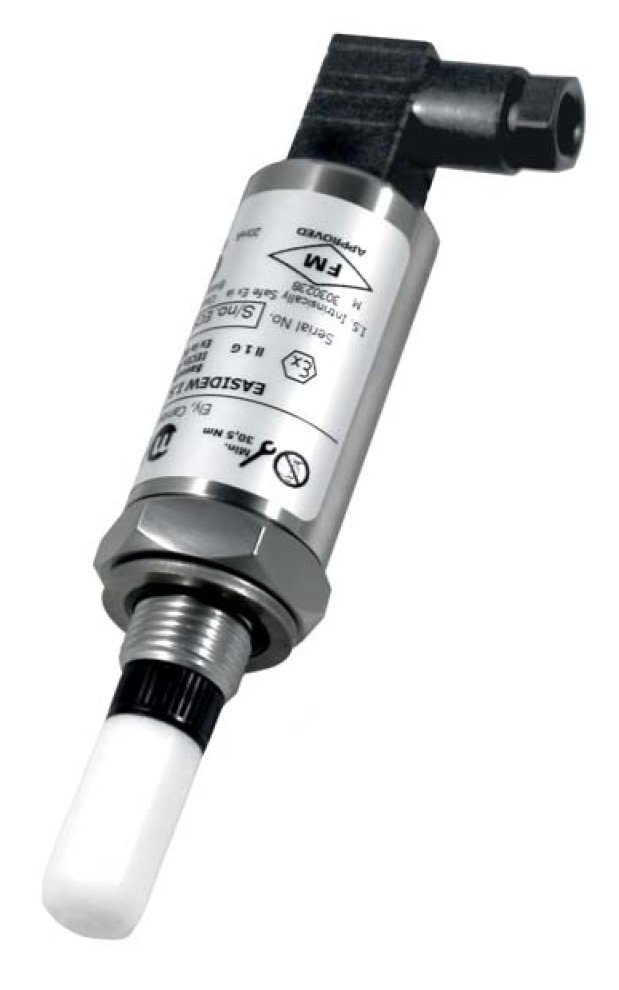

Michell Instruments Easidew EA2 Dew Point Transmitter
±2°C dew point measurement, -100 to +20°C dp range, 5/8" UNF process connection
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Michell Instruments Easidew EA2 Dew Point Transmitter offers measurement from -100 to +20°C dp and a two-wire 4 to 20mA analog output. Featuring a 316 stainless steel sensor and sample block, the EA2 has a standard 5/8 inch UNF process connection. The Easidew EA2 transmitter maintains an accuracy of ±2°Cdp and the output can be configured for dew point or ppmv moisture content. The included HDPE guard protects against fine particulates <10µm.
Overview and Features
Features
- -100 to +20°C dp range
- ±2°Cdp accuracy
- 2-wire 4 to 20 mA output
- 316 stainless steel sensor and sample blocks
- 2-wire loop power connection
- 5/8″ UNF process connection
- Standard HDPE guard (protection against fine particulate <10µm)
What’s in the Box
- Traceable calibration certificate
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
