Manchester Tank

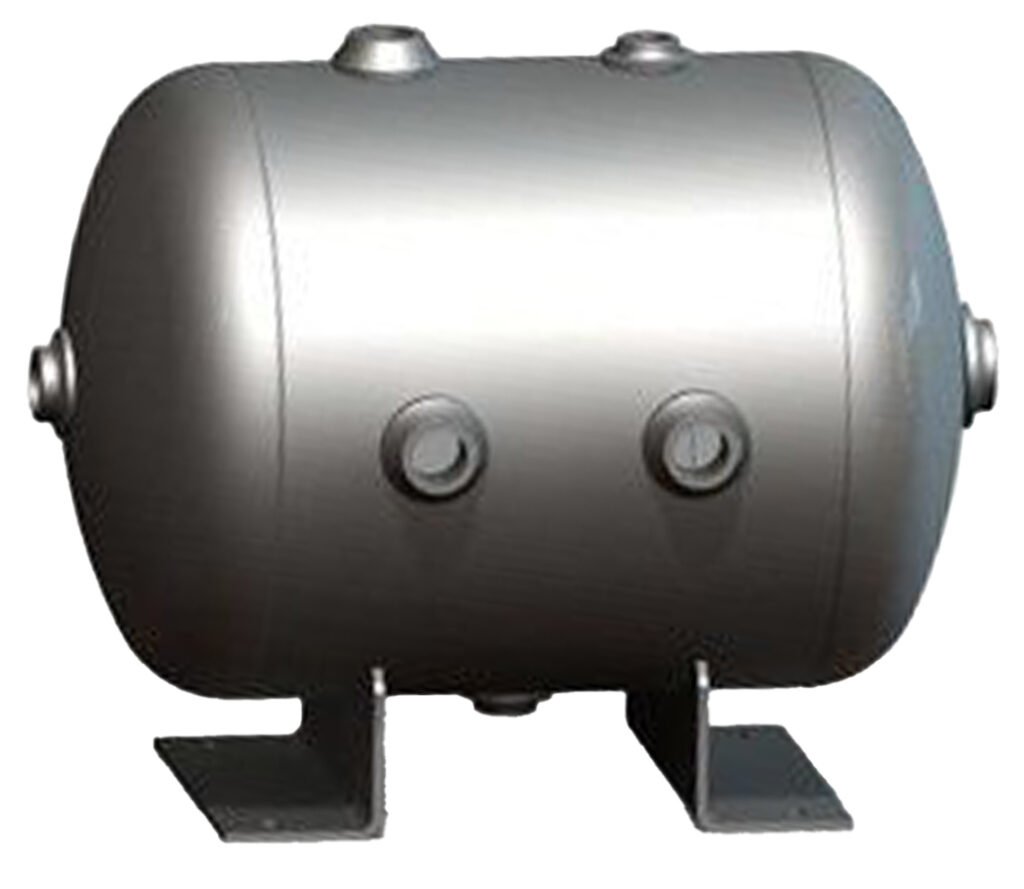

Manchester Tank Universal Horizontal Air Tank
ASME & CRN coded, steel air tank with legs, 1 to 30 gallon capacities, rated up to 200 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Overview and Features
Features
- 1 to 30 gallon tank sizes available
- Rated for up to 200 PSI
- Carbon steel construction
- Gray primer coated exterior
- Designed and constructed in accordance with ASME Section VIII Div-I Code
- “U” stamped and registered with National Board
- 10 to 1550 gallon, CRN certified for all provinces and territories in Canada
Special exterior and interior coatings available upon request. Please contact us for more information.
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pressure Rating | 200 PSI |
|---|---|
| Tank Capacity | 1 gallon, 2 gallon, 3 gallon, 5 gallon, 7 gallon, 10 gallon, 13 gallon, 15 gallon, 19 gallon, 24 gallon, 30 gallon |
| Tank Dimensions | 6" x 11", 8" x 11", 8" x 16", 10" x 16", 12" x 17", 12" x 23", 14" x 23", 14" x 26", 16" x 25", 16" x 31", 18" x 31" |
