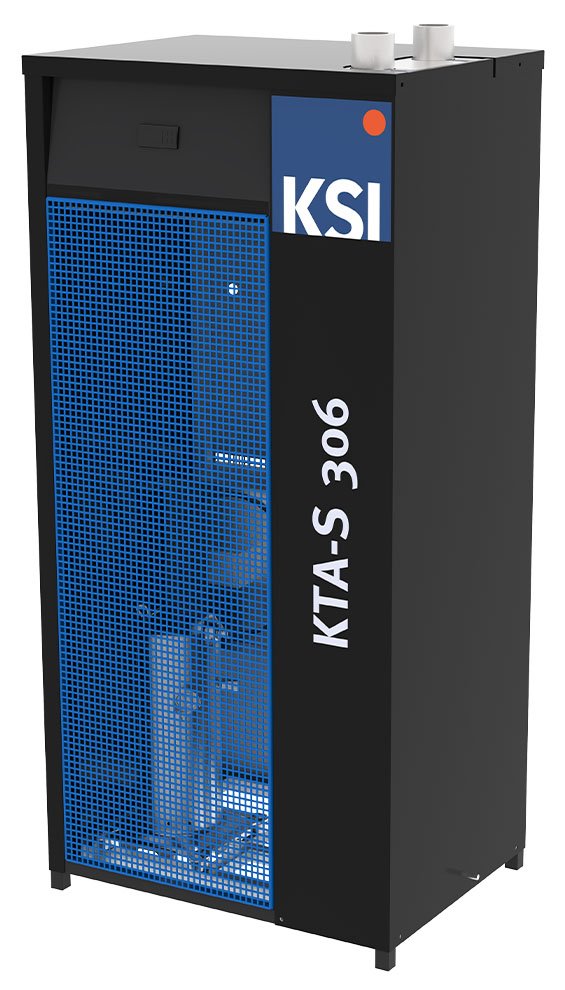

KSI Technologies EcoTroc KTA-S Series Refrigerated Air Dryer
14 to 1890 CFM non-cycling refrigerated air dryer delivering +37.4°F pressure dew point
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The KSI Technologies EcoTroc KTA-S Series Refrigerated Air Dryer is a compact non-cycling refrigerated air dryer with a capacity flow of 14 to 1890 CFM and a +37.4°F pressure dew point. The microprocessor controller automatically controls the operation for the dryer. Providing information on the current status of the process and, in the event of problems or errors, allows easy troubleshooting.
Overview and Features
Features
- 14 to 1890 CFM
- 232 PSIG max pressure
- 140°F max inlet air temperature
- +37.4°F pressure dew point
- Copper heat exchanger
- Time-controlled condensate drain included
- R513a refrigerant
- Filter package available: (recommended)
- 1 micron pre filter
- 0.01 micron post filter
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 14 CFM, 35 CFM, 47 CFM, 85 CFM, 118 CFM, 176 CFM, 235 CFM, 306 CFM, 376 CFM, 470 CFM, 635 CFM, 753 CFM, 945 CFM, 1180 CFM, 1420 CFM, 1890 CFM |
|---|---|
| Voltage | 110/1/60, 220/1/60, 460/3/60 |
| Connection | 1/4" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT, 2" NPT, 3" flange, 4" flange |
| Filter Package | None, Add Pre and Post Filter Package |
