KSI Technologies

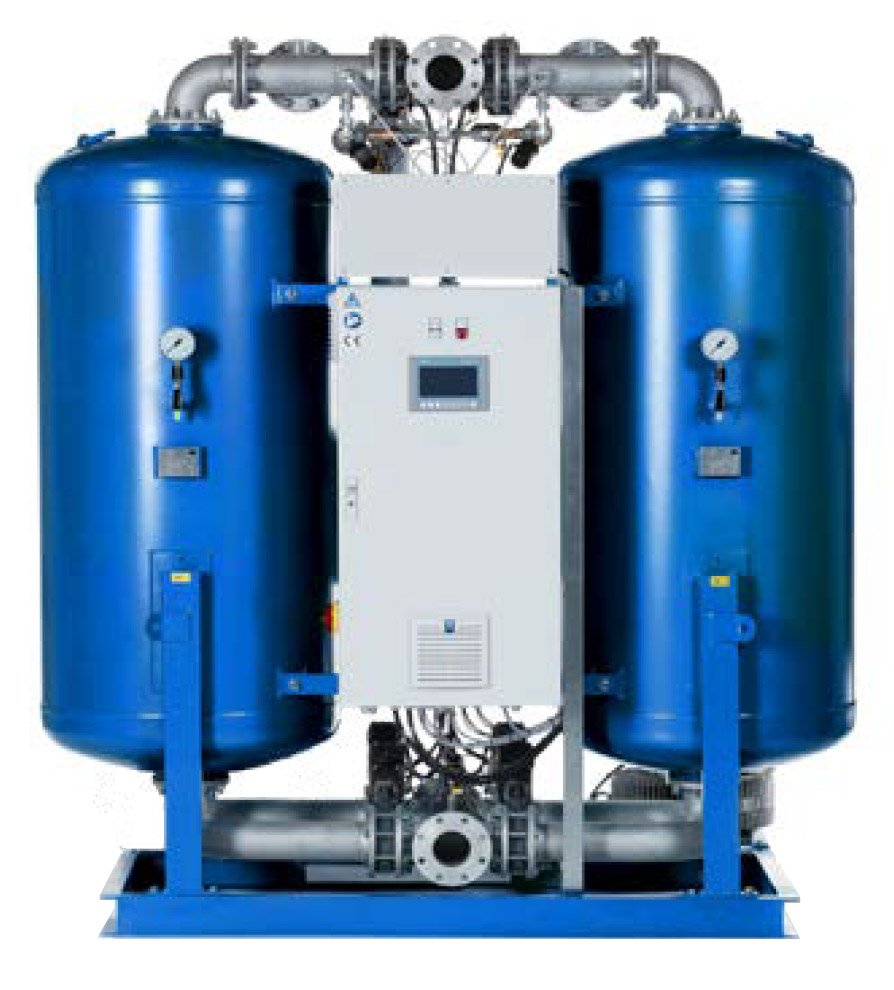

KSI Technologies EcoTroc DDWB Desiccant Air Dryer
Zero purge heated desiccant air dryer, desorption and cooling via blower conveyed ambient air
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The KSI Technologies EcoTroc DDWB Desiccant Air Dryer executes regeneration using blower air in counterflow to the adsorption direction. The EcoTroc DDWB produces a pressure dew point -40°F and is available in capacities up to 5590 CFM.
Overview and Features
Features
- 235 to 5590 CFM capacities
- -40°F pressure dew point
- Max pressures:
- 235 to 1765 CFM: 160 PSI
- 2060 to 5590 CFM: 145 PSI
- DIN EN 1092-1 Typ 11 (DIN 2633) connection
- PLC SIMATIC S7-1200 including touch panel KTP700
- End position control for valves K1 and K2
- 380-500 V, 50 Hz/60 Hz special power supply
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 235 CFM, 410 CFM, 590 CFM, 825 CFM, 1000 CFM, 1175 CFM, 1475 CFM, 1765 CFM, 2060 CFM, 2355 CFM, 2950 CFM, 3535 CFM, 4120 CFM, 4825 CFM, 5590 CFM |
|---|
