KSI Technologies

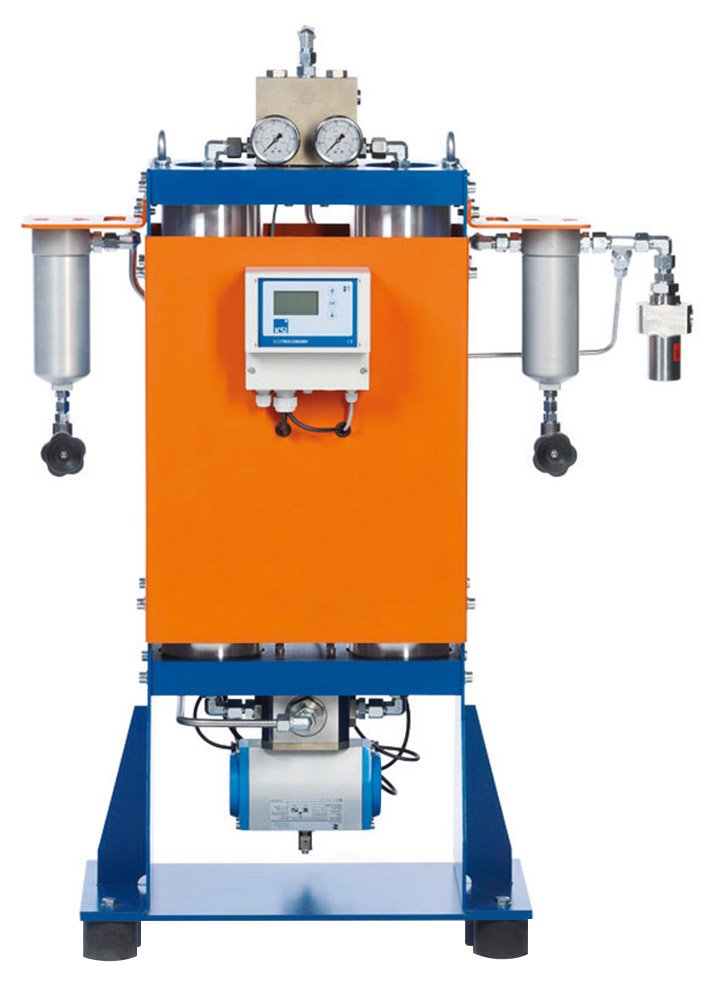

KSI Technologies EcoTroc DDN-HP High Pressure Desiccant Air Dryer
Heatless desiccant air dryer with activated carbon adsorber, working pressures up to 7250 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The KSI Technologies EcoTroc DDN-HP High Pressure Desiccant Air Dryer is a heatless design available in multiple max operating pressure configurations up to 7250 PSI. The DDN-HP includes the EcoClean HP-SMA prefilter and the HP-DMF afterfilter as standard as well as the EcoMatic controller.
Overview and Features
Features
- Max working pressure and capacities:
- 725 PSI: 25 to 755 CFM
- 3625 PSI: 50 to 480 CFM
- 5075 PSI: 70 to 660 CFM
- 6525 PSI: 90 to 810 CFM
- 7250 PSI: 95 to 825 CFM
- -40 to -94°F pressure dew point
- EcoMatic Controller included
- High-pressure fittings
- Weld seam-free stainless steel vessel
- Internal self-cleaning dust filter
- Stainless steel towers with 3-bed fill
- Preloaded desiccant bed
- EcoClean HP-SMA prefilter and HP-DMF afterfilter included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Max Operating Pressure | 725 PSI, 3625 PSI, 5075 PSI, 6525 PSI, 7250 PSI |
|---|---|
| Capacity | 25 CFM, 40 CFM, 50 CFM, 70 CFM, 90 CFM, 95 CFM, 100 CFM, 120 CFM, 125 CFM, 130 CFM, 140 CFM, 180 CFM, 185 CFM, 240 CFM, 245 CFM, 270 CFM, 365 CFM, 375 CFM, 420 CFM, 460 CFM, 470 CFM, 480 CFM, 495 CFM, 530 CFM, 565 CFM, 575 CFM, 590 CFM, 660 CFM, 695 CFM, 705 CFM, 755 CFM, 810 CFM, 825 CFM |
