KSI Technologies

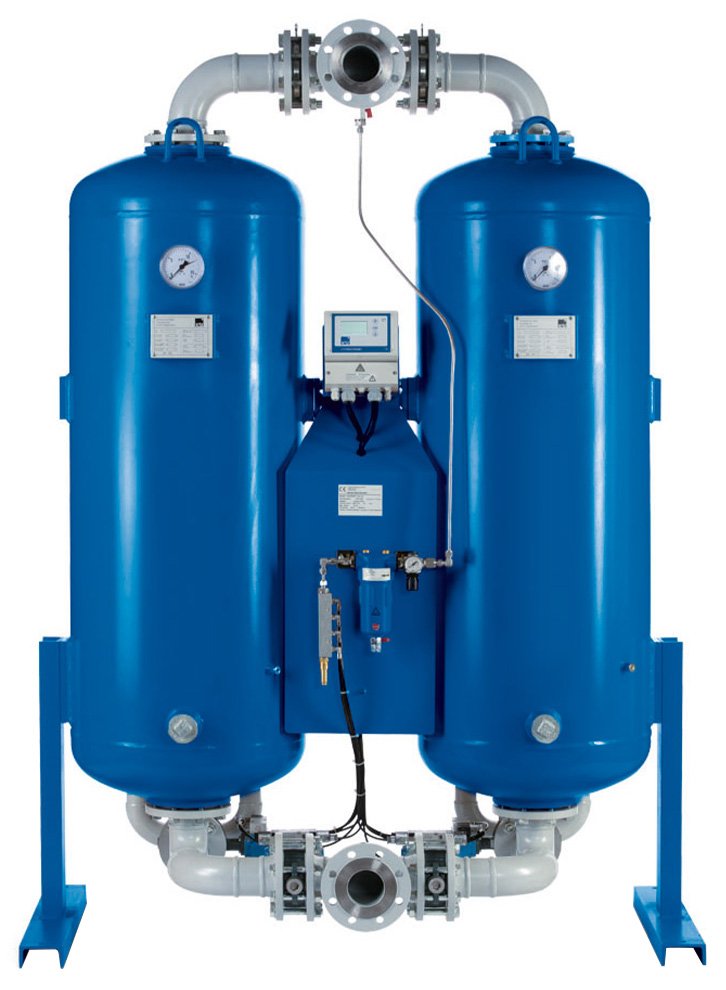

KSI Technologies EcoTroc DDF Heatless Desiccant Air Dryer
Fully automatic heatless dryer with pressure dew point down to -40°F, 900 to 1800 CFM capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The KSI Technologies EcoTroc DDF Heatless Desiccant Air Dryer is designed for large capacity systems up to 1800 CFM with a maximum operating pressure of 159.5 PSI. The EcoTroc DDF featured optimized flow velocity and dwell time of the air in the vessel, large cross-sections in the main and expansion lines, and individually controlled shut-off valves at the inlet. The EcoMatic controller includes a compressor start/stop function for complete control.
Overview and Features
Features
- 900 to 1800 CFM models available
- -40°F pressure dew point
- 159.5 PSI max working pressure
- DN80 and DN100 flange connections
- EcoMatic electric control device standard
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 900 CFM, 1200 CFM, 1500 CFM, 1800 CFM |
|---|---|
| Controller | Standard time controller, Energy saving dew point controller, Energy saving dew point controller with inlet air monitoring |
