KSI Technologies

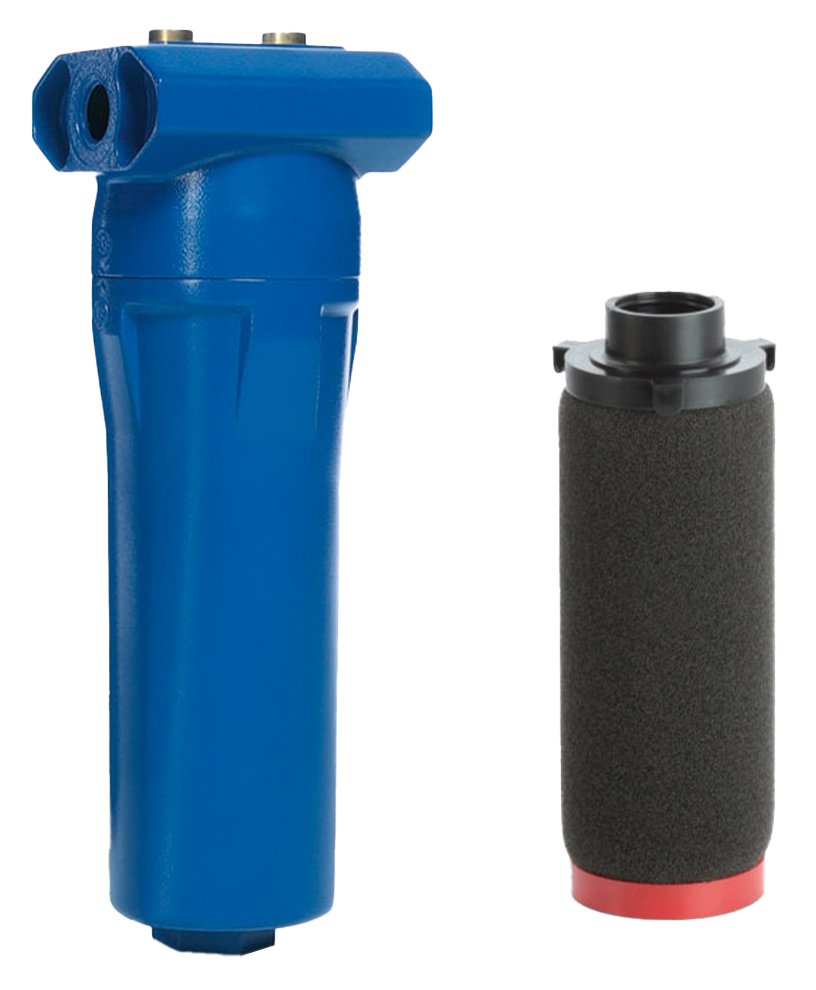

KSI Technologies EcoClean Vacuum Pump Filter
Vacuum inlet or exhaust filter, 5 to 118 CFM, -13.3 PSI negative pressure
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The KSI Technologies EcoClean Vacuum Pump Filter is available in two models, an inlet pump protection filter, and an exhaust filter. The inlet model provides 1 micron particle removal. The exhaust filter is available with three different filter elements: 1 micron particle removal with 0.5 mg/m3 residual oil content, 0.01 micron particle removal with 0.01 mg/m3 residual oil content, and Activated Carbon with 0.003 mg/m3 residual oil content.
Overview and Features
Features
- 5 to 118 CFM
- -13.3 PSI max working pressure
- Inlet filter:
- VP MFO: 1 micron particle removal
- Exhaust filters:
- MFO: 1 micron particle removal, 0.5 mg/m3 residual oil content
- SMA: 0.01 micron particle removal, 0.01 mg/m3 residual oil content
- CA: Activated Carbon, 0.003 mg/m3 residual oil content
- Aluminum housing
- 1/2″ ball valve
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Filter Type | Vacuum inlet, Vacuum exhaust |
|---|---|
| Capacity | 5 CFM, 6 CFM, 9 CFM, 18 CFM, 38 CFM, 47 CFM, 59 CFM, 85 CFM, 100 CFM, 118 CFM |
| Connection Size | 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/4" NPT, 1-1/2" NPT, 2" NPT, 2-1/2" NPT |
| Filtration | 1 micron particle removal, 1 micron particle, 0.5 mg/m3 residual oil content, 0.01 micron particle, 0.1 mg/m3 residual oil content, 0.003 mg/m3 residual oil content |
