KSI Technologies EcoClean PFU3 Breathing Air Filter
3 stage filtration for breathing air systems in critical applications, 130 or 210 CFM capacities
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

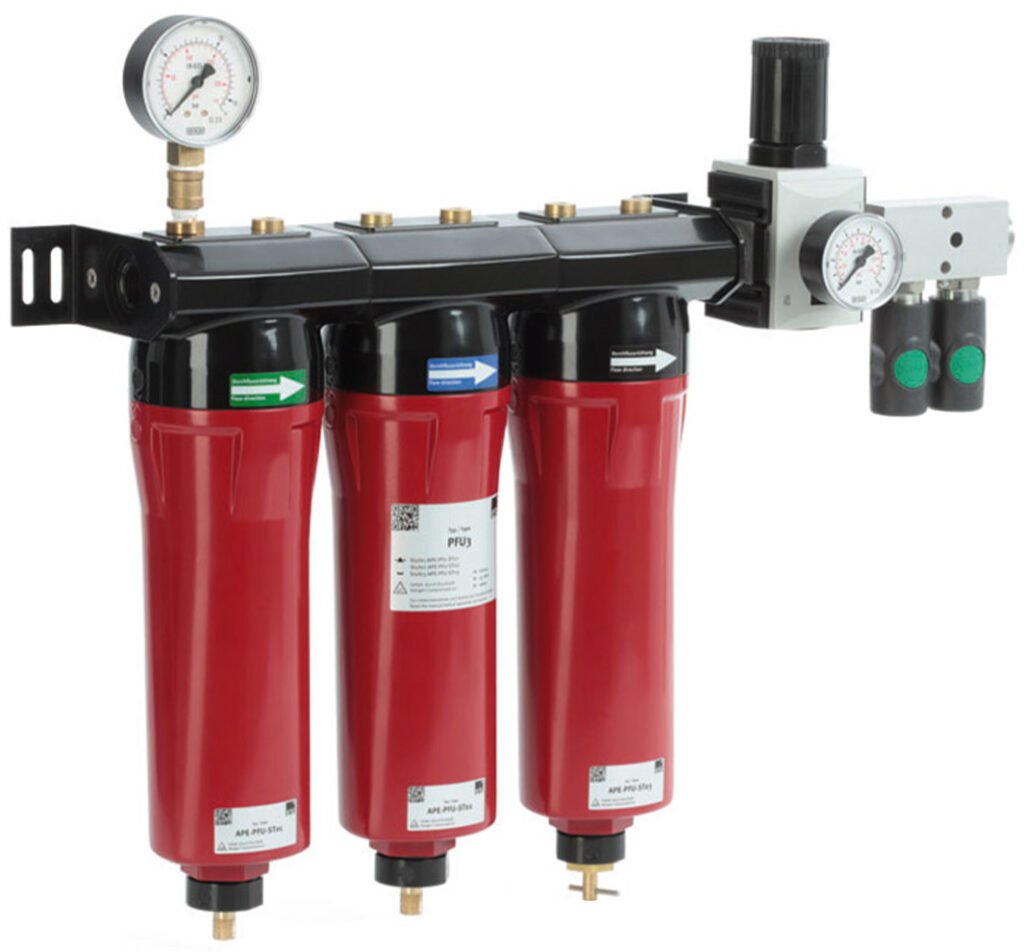

The KSI Technologies EcoClean PFU3 Breathing Air Filter is a ready-to-operate 3-stage filter with an included pressure regulator, pressure gauge, outlet valves, and wall mounting brackets. The EcoClean PFU3 provides 100% technical oil and particle-free air.
Three stages of filtration:
- 5 microns filtration with water separation function and automatic condensate drain
- 0.01 micron filtration and automatic condensate drain
- Activated carbon filtration and manual drain, <0.003 mg/m3 residual oil content
Overview and Features
Features
- 130 or 210 CFM capacities
- Stages:
- 1) 5 microns filtration with water separation function and automatic condensate drain
- 2) 0.01 micron filtration and automatic condensate drain
- 3) Activated carbon filtration and manual drain, <0.003 mg/m3 residual oil content
- Pressure gauge for inlet pressure display
- Pressure regulator
- 2 outlet valves with safety clutch
- Wall mounting brackets included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 130 CFM, 210 CFM |
|---|---|
| Inlet Connection Size | 1/2", 1" |
