KSI Technologies EcoClean MAK63 Breathing Air Filter
Mobile preparation of compressed air and technical breathing air, 35 CFM capacity
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

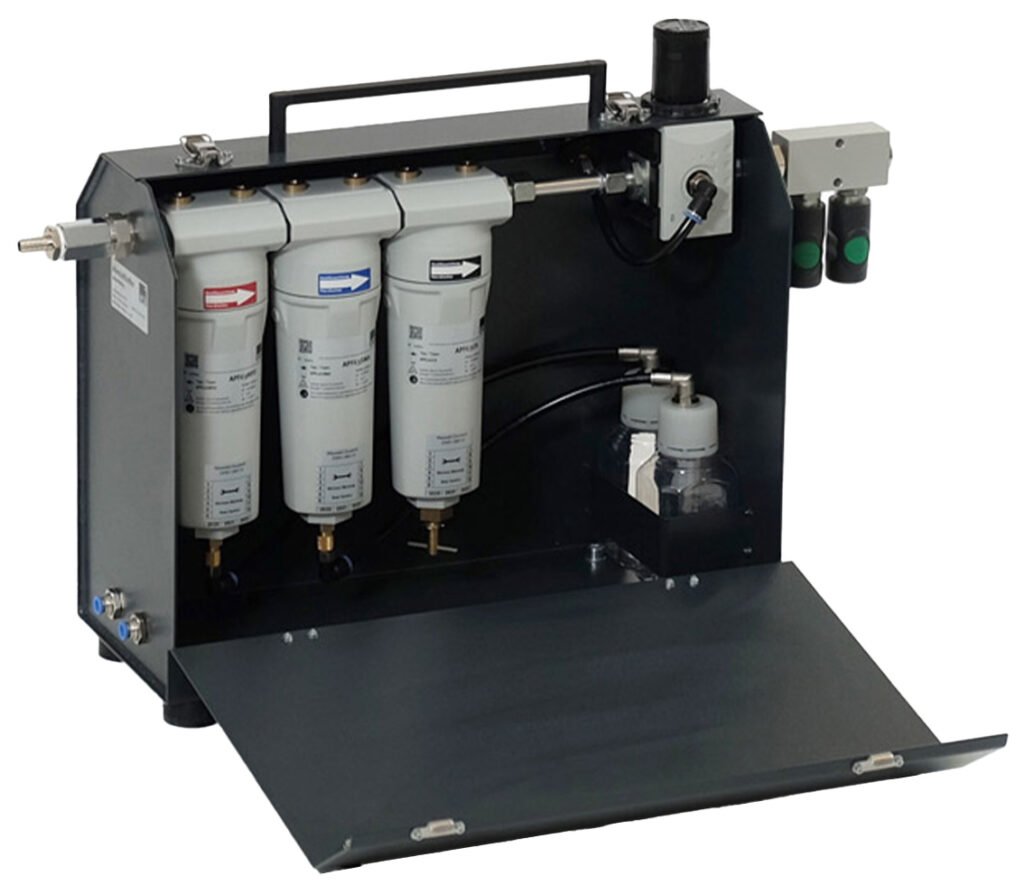

The KSI Technologies EcoClean MAK63 Breathing Air Filter is designed for mobile preparation of compressed air and technical breathing air. This complete system is mounted in a portable case. It includes a pressure gauge for inlet pressure display, a pressure regulator, a condensate collector, 2 connections with safety couplings, and 2 connections for external oil water separators.
Overview and Features
Features
- 35 CFM capacity
- 232 PSI max working pressure
- Stages:
- 1) APF35MFO with automatic condensate drain D150
- 2) APF35SMA with automatic condensate drain D150
- 3) APF35 CA with manual condensate drain HAM12
- Pressure gauge for inlet pressure display
- Pressure regulator
- Condensate collector
- 2 connections with safety couplings
- 2 connections for external oil-water separators
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
