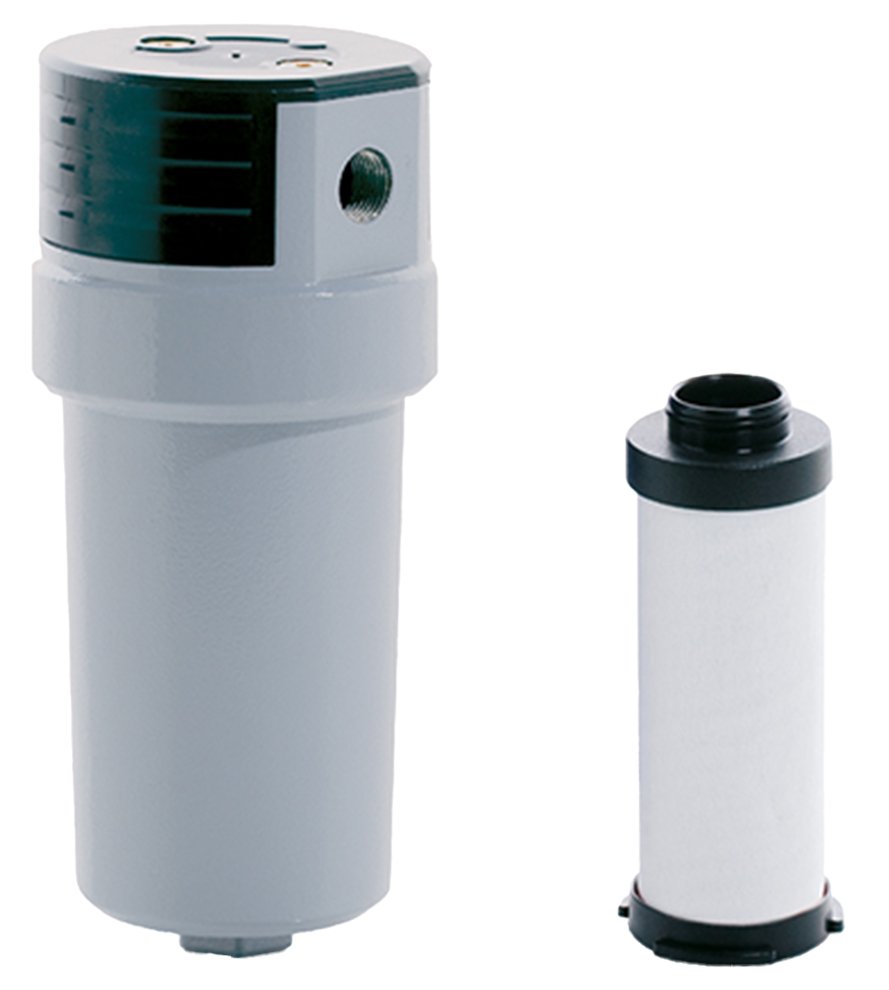

KSI Technologies EcoClean High Pressure Filter
725 to 7250 PSI models available, aluminum or stainless steel housing, 150 to 1210 CFM capacities
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The KSI Technologies EcoClean High Pressure Filter is available in 725, 3625, 5075, 6252, or 7250 PSI pressure ratings. It is also available with a full range of filtration options from particle removal, oil vapor/odor removal, and water separation.
Overview and Features
Features
- 725 to 7250 PSI pressure ratings
- 150 to 1210 CFM
- Filters available:
- VF25: 25 micron
- FF5: 5 micron
- MFO: 1 micron
- MF1: 0.1 micron
- SMA: 0.01 micron
- CA: Activated Carbon 0.003 mg/m3
- WS: Water Separator
- Aluminum or stainless steel housing
- High pressure ball valve included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Pressure Rating | 725 PSI (aluminum housing), 3625 PSI (stainless steel housing), 5075 PSI (stainless steel housing), 6525 PSI (stainless steel housing), 7250 PSI (stainless steel housing) |
|---|---|
| Capacity | 150 CFM, 290 CFM, 420 CFM, 640 CFM, 795 CFM, 1055 CFM, 1210 CFM, 151 CFM, 264 CFM, 495 CFM, 763 CFM, 170 CFM, 297 CFM, 557 CFM, 859 CFM, 188 CFM, 330 CFM, 618 CFM, 954 CFM, 197 CFM, 645 CFM, 651 CFM, 1007 CFM |
| Connection Size | 3/8", 1/2", 3/4", 1", 1-1/2", 2" |
| Filter Type | Standard, Activated carbon, Water separator |
| Filtration | 25 micron, 5 micron, 1 micron, 0.1 micron, 0.01 micron, 0.003 mg/m3 residual oil content at 68°F, N/A |
