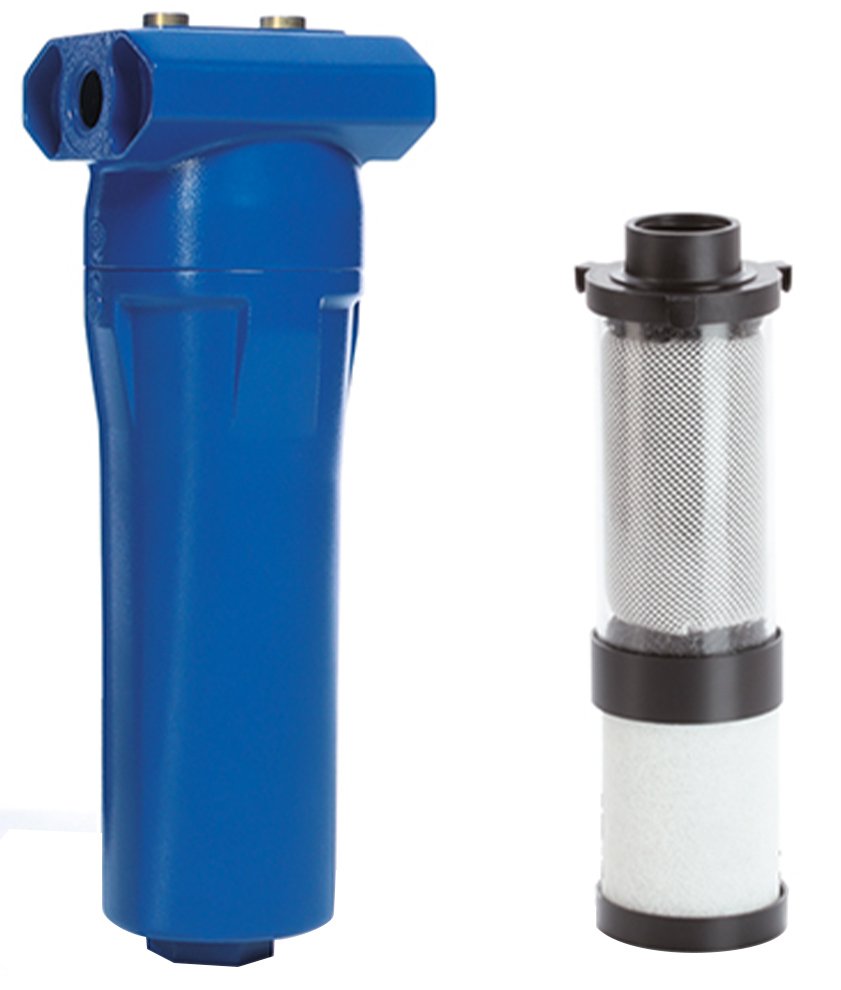

KSI Technologies EcoClean Cartridge Filter
Oil vapor/odor removal or moisture removal cartridges, 1 micron integrated afterfilter
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The KSI Technologies EcoClean Cartridge Filter is available with a CAK activated carbon cartridge for the removal of oil vapor and odors, residual oil content 0.003 mg/m³ (at 68°F), or an MSK molecular sieve cartridge for the removal of moisture (dew point up to -40°F possible). Both models include an HC catalyst cartridge for the removal of carbon monoxide.
Overview and Features
Features
- Activated carbon (CAK) and molecular sieve (MSK) models available
- Catalyst cartridge included on both models
- Capacities:
- CAK: 18 to 190 CFM
- MSK: 0.3 to 1.2 CFM
- Max temperatures:
- CAK: 86°F
- MSK: 122°F
- 232 PSI max working pressure
- Aluminum housing
- Manual drain
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Filter Type | Removal of oil vapor/odors, Adsorption of moisture |
|---|---|
| Capacity | 18 CFM, 35 CFM, 65 CFM, 110 CFM, 190 CFM, 0.3 CFM, 0.45 CFM, 0.6 CFM, 0.9 CFM, 1.2 CFM |
| Connection Size | 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/2" NPT |
