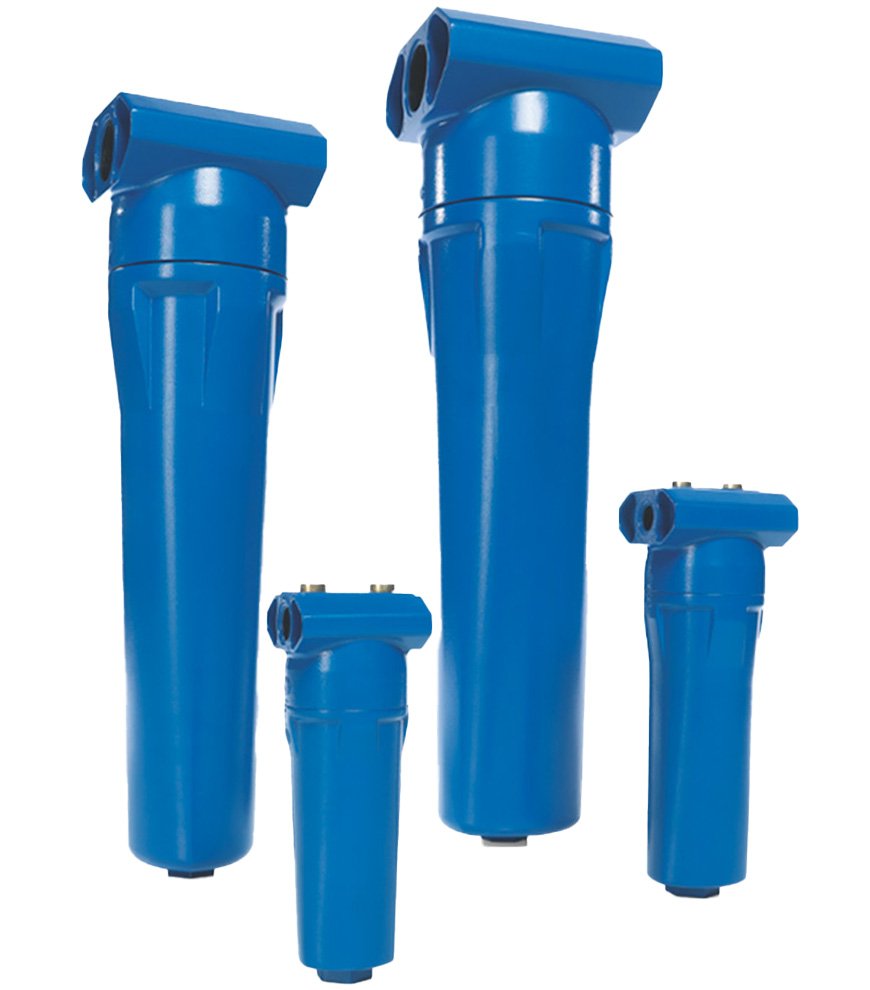

KSI Technologies EcoClean Air Filter
Air filter with threaded connection, 35 to 1300 CFM capacities, 25 to 0.01 micron filtration options
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
KSI Technologies EcoClean Air Filter features an arc-shaped compressed air inlet that optimizes the flow distribution in the filter, resulting in 75% less flow resistance than comparable elbow shapes. Filtration takes place through the various layers of the filter element, which is passed through from the inside to the outside.
Overview and Features
Features
- 35 to 1300 CFM models available
- 3/8” to 3″ NPT connection
- 33.8 to 248°F temperature range
- Filter options:
- VF25: 25 micron
- FF5: 5 micron
- MFO: 1 micron
- MF1: 0.1 micron
- SMA: 0.01 micron
- Max working pressures:
- APF35-38 to APF765: 232 PSI
- APF885: 195.75 PSI
- APF1300: 152.25 PSI
- Aluminum housing
- Automatic drain included
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 35 CFM, 55 CFM, 70 CFM, 130 CFM, 210 CFM, 320 CFM, 410 CFM, 470 CFM, 765 CFM, 885 CFM, 1300 CFM |
|---|---|
| Connection Size | 3/8" NPT, 1/2" NPT, 3/4" NPT, 1" NPT, 1-1/4" NPT, 1-1/2" NPT, 2" NPT, 2-1/2" NPT, 3" NPT |
| Filtration | 25 micron, 5 micron, 1 micron, 0.1 micron, 0.01 micron |
