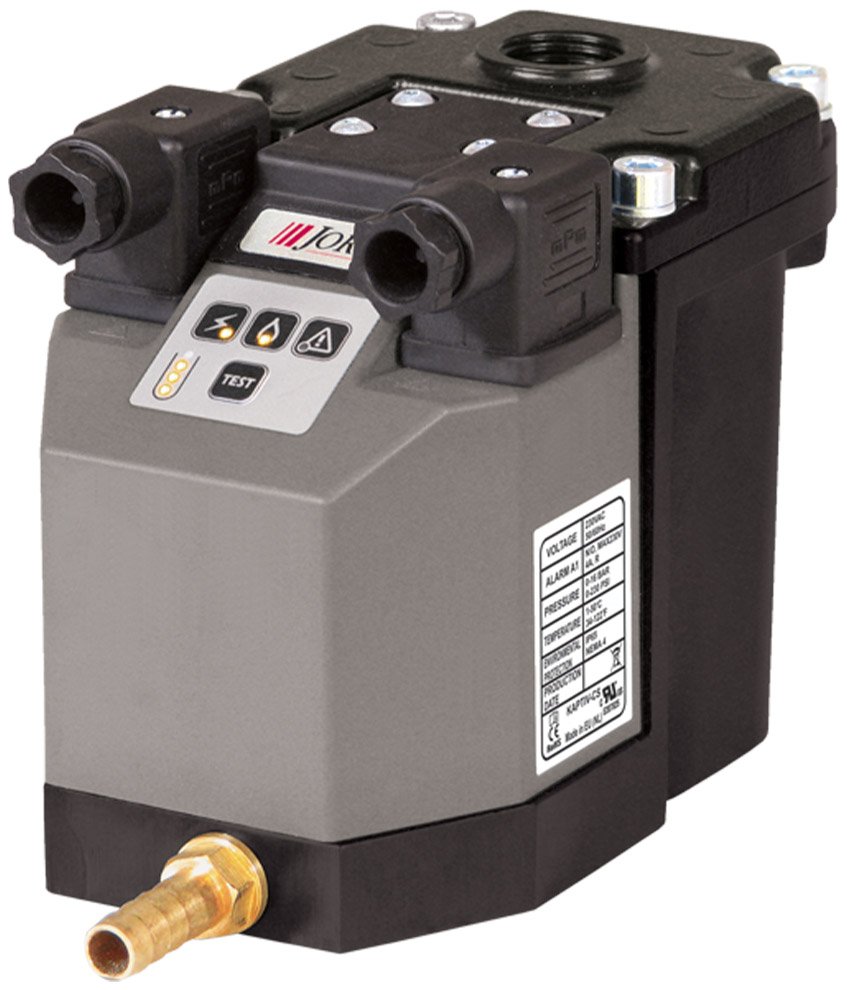

JORC Industrial SMART-GUARD Series Drain
Electronic zero air loss condensate drain with alarm for applications up to 3500 CFM
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The JORC Industrial SMART-GUARD Series drain features a remote alarm contact, a test button, and LED indicator lights. The compact and durable housing, 2/2 way direct acting valve with 4mm orifice, digital sight-port/level indicator, alarm normally closed (N/C) or normally open (N/O) and the integrated mesh strainer make the SMART-GUARD a reliable draining solution. All models include a six foot power cord and feature a removable electronic module and top cover, allowing you to disassemble the drain without disconnecting any pipe work.
Overview and Features
Features
- 176 gallons per hour at 230 PSI max drainage capacity
- 3500 CFM max compressor capacity
- 1/2″ NPT inlet connection (3 options)
- 1/4″ with hose pipe connector outlet connection
- Alarm options:
- Normally open contact (N/O)
- Normally closed contact (N/C)
- Included test feature
- Integrated mesh strainer
- 4mm valve orifice
- 2/2 way, direct acting valve type
- FPM valve seals
- DIN 43650-B power connection
- Aluminum housing material
- NEMA4 (IP65) protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Voltage | 230 VAC, 115 VAC, 24 VAC, 24 VDC |
|---|---|
| Alarm | Add normally open contact (N/O) alarm, Add normally closed contact (N/C) alarm |
