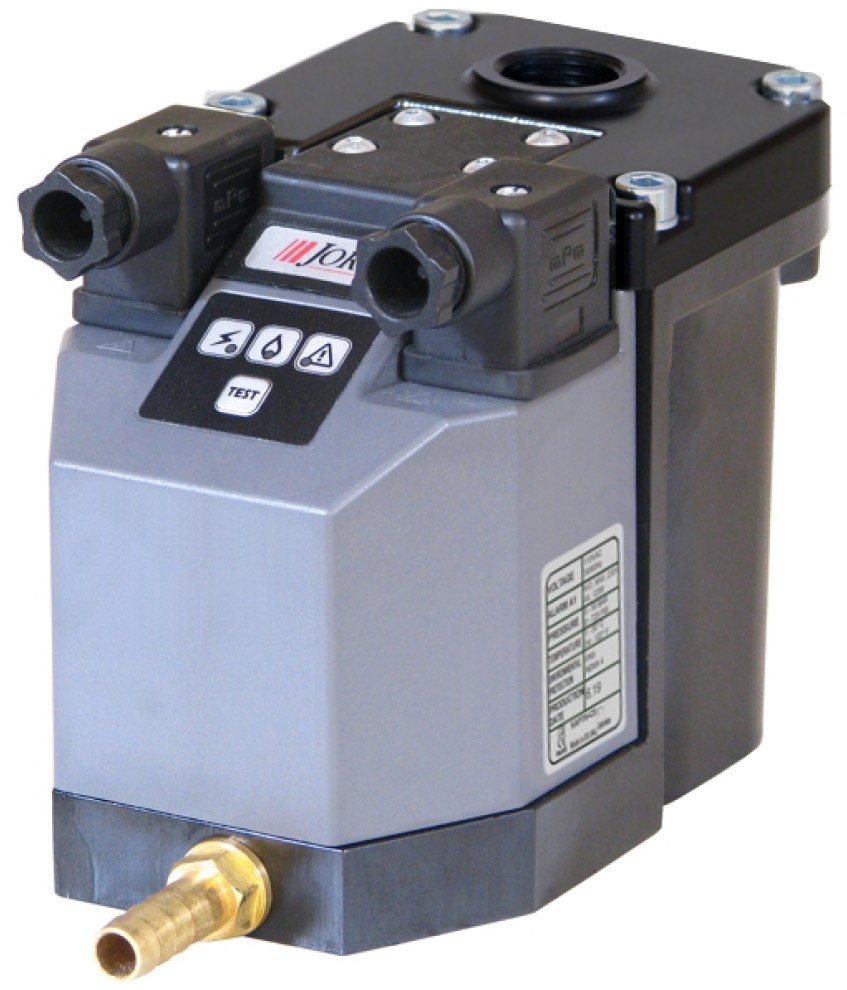

JORC Industrial SMART-GUARD-HP Series Drain
Electronic zero air loss condensate drain with alarm for high pressure applications up to 725 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The JORC Industrial SMART-GUARD Series drain is specifically designed for applications with high pressures up to 725 PSI and up to 3500 CFM. It features a remote alarm contact, a test button, and LED indicator lights. The 2/2-way capacitive level sensor operates a direct acting valve to discharge condensate without losing any of the compressed air in the system. An integrated mesh strainer protects the valve from blockage and alarm contacts provide remote, real time indication of drain function. Alarm options available are normally closed (N/C) or normally open (N/O).
Overview and Features
Features
- 31 gallons per hour at 725 PSI max drainage capacity
- 3500 CFM max compressor capacity
- 1/2″ NPT inlet connection (3 options)
- 1/4″ with hose pipe connector outlet connection
- Alarm options:
- Normally open contact (N/O)
- Normally closed contact (N/C)
- Included test feature
- Integrated mesh strainer
- 1.8mm valve orifice
- 2/2 way, direct acting valve type
- FPM valve seals
- DIN 43650-B power connection
- Aluminum housing material
- NEMA4 (IP65) protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Voltage | 230 VAC, 115 VAC, 24 VAC, 24 VDC |
|---|---|
| Alarm | Add normally open contact (N/O) alarm, Add normally closed contact (N/C) alarm |
