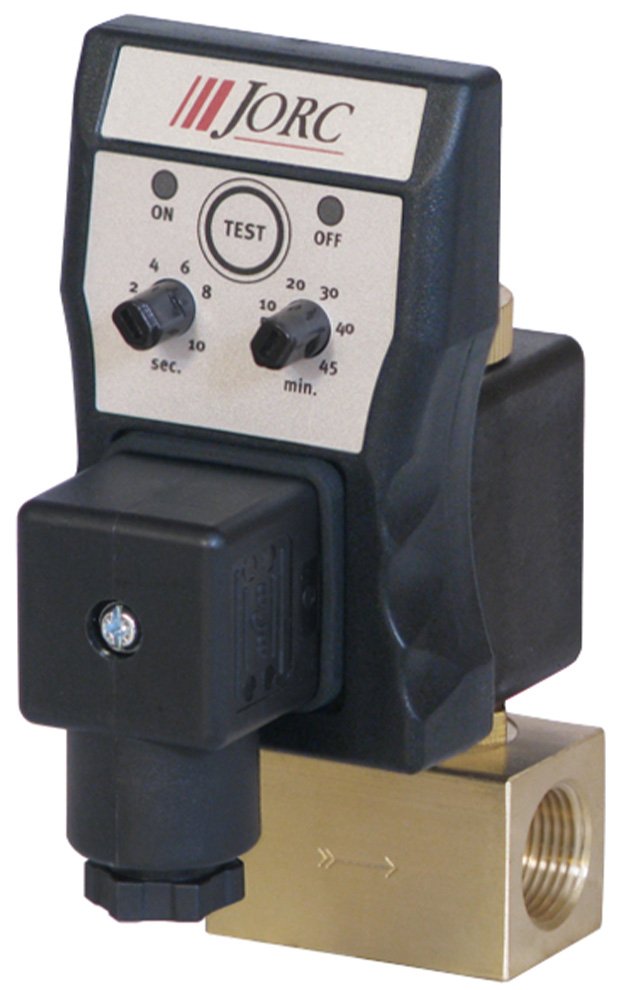

JORC Industrial OPTIMUM Series Drain
Electronic timer controlled drain with brass or stainless steel valve bodies, rated up to 230 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The JORC Industrial OPTIMUM Series drain is suitable for a wide range of compressed air applications including compressors, receivers, filters, and refrigerated air dryers. The included adjustable electronic timer, direct acting solenoid valve, large orifice, and a brass or stainless steel body, the OPTIMUM Series provides reliable and compact condensate removal.
The OPTIMUM Series is easy to install, simple to adjust, and rated for pressures up to 230 PSI. Out of the box, it includes a test switch, LED on/off indication, and a serviceable valve. The large 4.5mm orifice makes this valve ideal for applications with high condensate flow rates and solid particulate contaminants.
Overview and Features
Features
- 0 to 230 PSI pressure range
- Timer cycle range
- On: 0.5 to 10 seconds
- Off: 0.5 to 45 minutes
- Included test feature
- 4.5mm valve orifice
- FPM valve seals
- Brass or Stainless Steel valve options
- NEMA4 (IP65) protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Valve Material | Brass, Stainless steel |
|---|---|
| Voltage | 230 VAC, 115 VAC, 24 VAC, 24 VDC |
| Pressure | 230 PSI, 600 PSI, 1200 PSI, 3600 PSI, 5000 PSI, 6000 PSI |
| Inlet / Outlet Size | 1/4" NPT, 3/8" NPT, 1/2" NPT |
