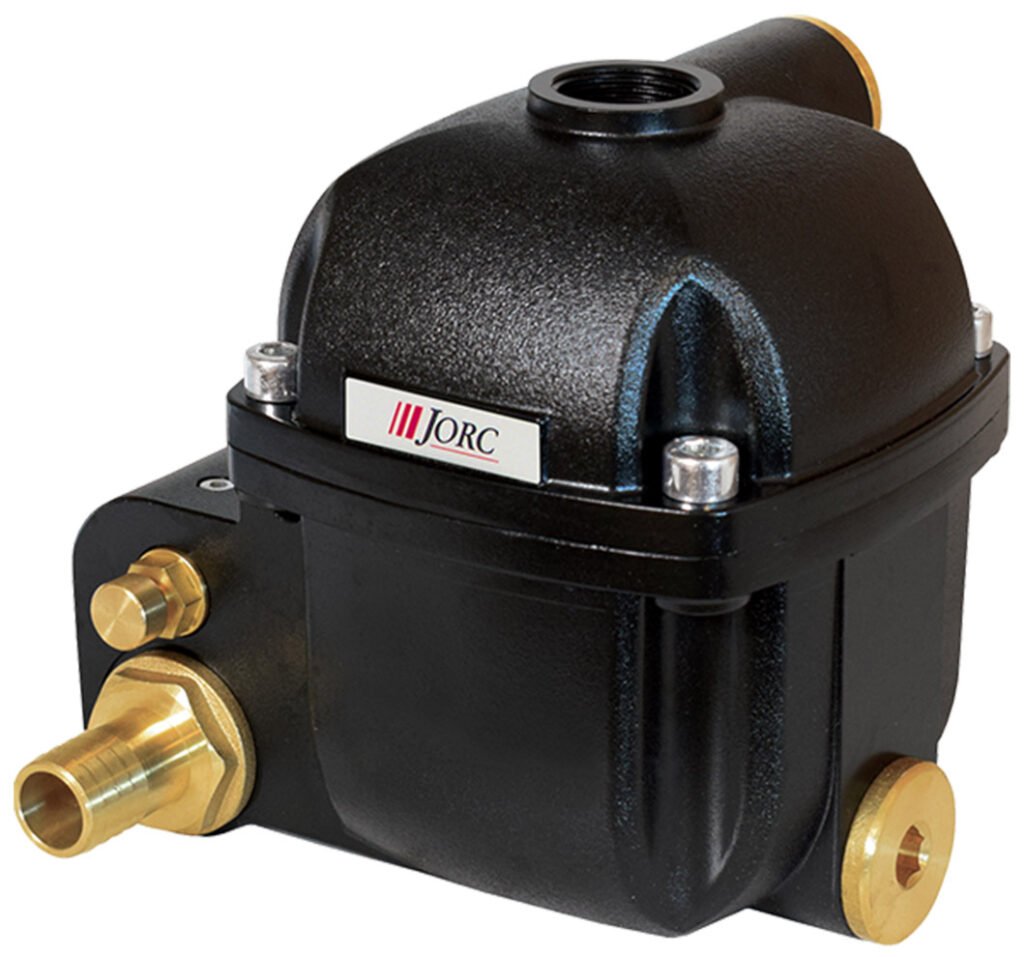

JORC Industrial NUFORS-XF Series Drain
Pneumatic zero air loss drain with a 12mm orifice and three 3/4" inlet ports
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The JORC Industrial NUFORS-XF Series drain is designed to remove all types of condensate from large capacity compressed air systems (up to 17500 CFM) without the need for electricity and without the unnecessary loss of compressed air. The NUFORS-XF has a large condensate discharge capacity of 1260 gallons condensate per hour at 230 psi. The discharge process is automatic and is based on a 3/2 way level controlled valve principle that operates a piston type direct acting valve.
Overview and Features
Features
- 17500 CFM max compressor capacity
- 1260 gallons per hour at 230 PSI max drainage capacity
- 44 to 230 PSI pressure range
- 3/4″ BSP or NPT inlet connections (3 options)
- 3/4″ BSP with brass hose barb adapter outlet connection
- 3/2 way direct acting valve type
- FPM valve seals
- 12mm valve orifice
- Aluminum construction with EP coating
- NEMA 6 (IP68) protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
Detailed specifications are available on request.
