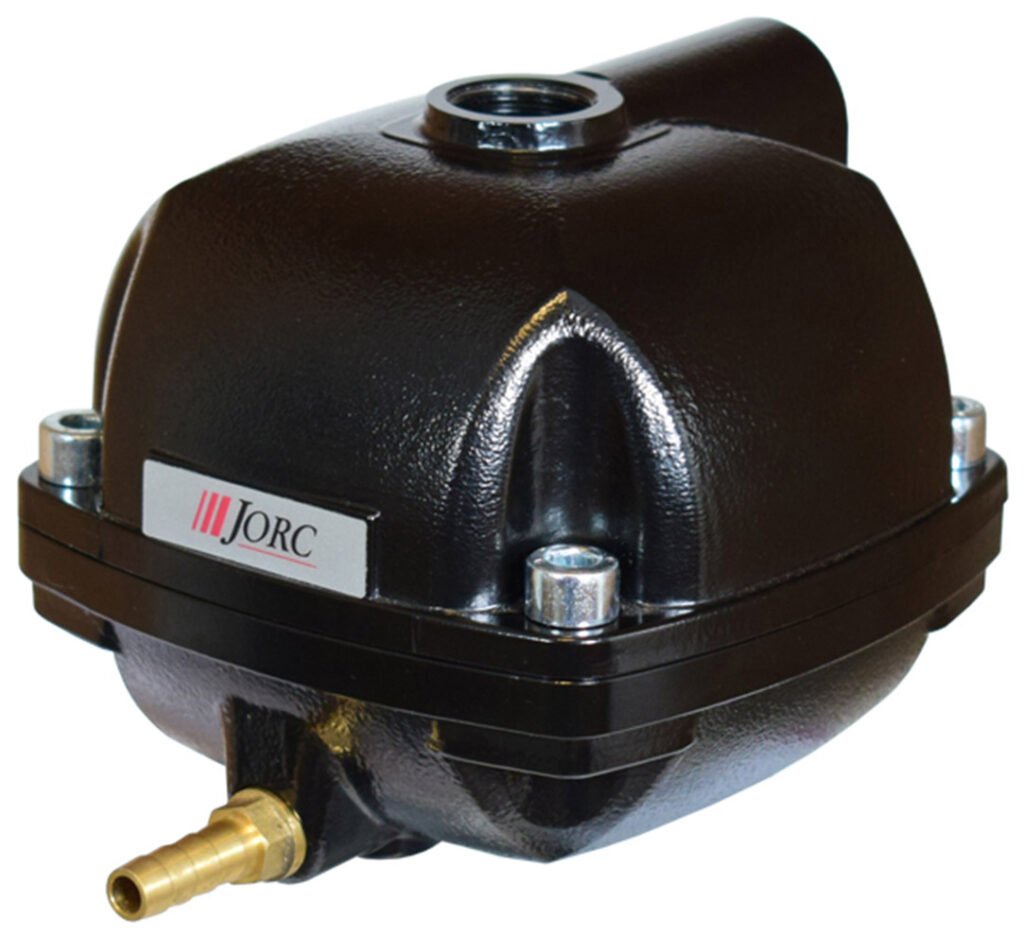

JORC Industrial MAG-11 Series Drain
Magnetically operated zero air loss drain that requires no control air or power source
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The JORC Industrial MAG-11 Series Drain is designed for use with coolers, refrigerated dryers, liquid separators, and piston compressors. The MAG-11 uses a magnetically operated 2/2-way direct acting valve assembly, discharging the condensate from your compressed air system without losing any compressed air. The MAG-11 is also available with a test feature. The test button offers the solution to check your MAG-11 ensuring nothing is obstructing the orifice. It also allows you to depressurize the drain for maintenance.
Overview and Features
Features
- 38 gallons per hour at 230 PSI max drainage capacity
- 0 to 230 PSI pressure range
- 2/2 way, direct acting valve type
- Two 1/2″ NPT inlet connections
- 1/8″ with hose pipe connector outlet connection
- Optional testing feature available
- Built in air lock prevention
- FPM valve seals
- Aluminum construction with EP coating
- NEMA6 (IP68) protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Test Button | None, Add test button |
|---|
