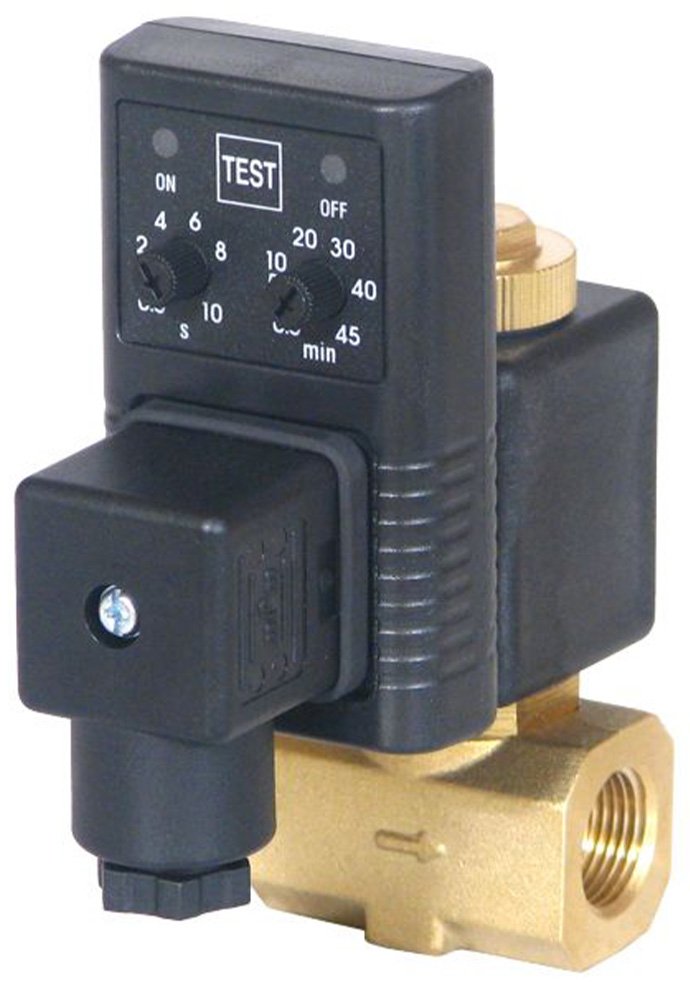

JORC Industrial EAD Series Electronic Drain
Electronic timer controlled drain with brass valve body, rated up to 230 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The JORC Industrial EAD Series drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems. The EAD series is designed to remove condensate from compressors, compressed air dryers, and receivers up to 230 PSI applications.
Overview and Features
Features
- 0 to 230 PSI pressure range
- Timer cycle range
- On: 0.5 to 10 seconds
- Off: 0.5 to 45 minutes
- Included test feature
- 4mm valve orifice
- FPM valve seals
- Brass valve body
- DIN 43650-A power connection
- NEMA4 (IP65) protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Voltage | 115 VAC, 230 VAC |
|---|---|
| Inlet / Outlet Size | 1/4" NPT, 3/8" NPT, 1/2" NPT |
