JORC Industrial COMBO-D-LUX Series Drain
Digital timer controlled drain with a brass valve body and integrated mesh strainer, rated up to 230 PSI
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

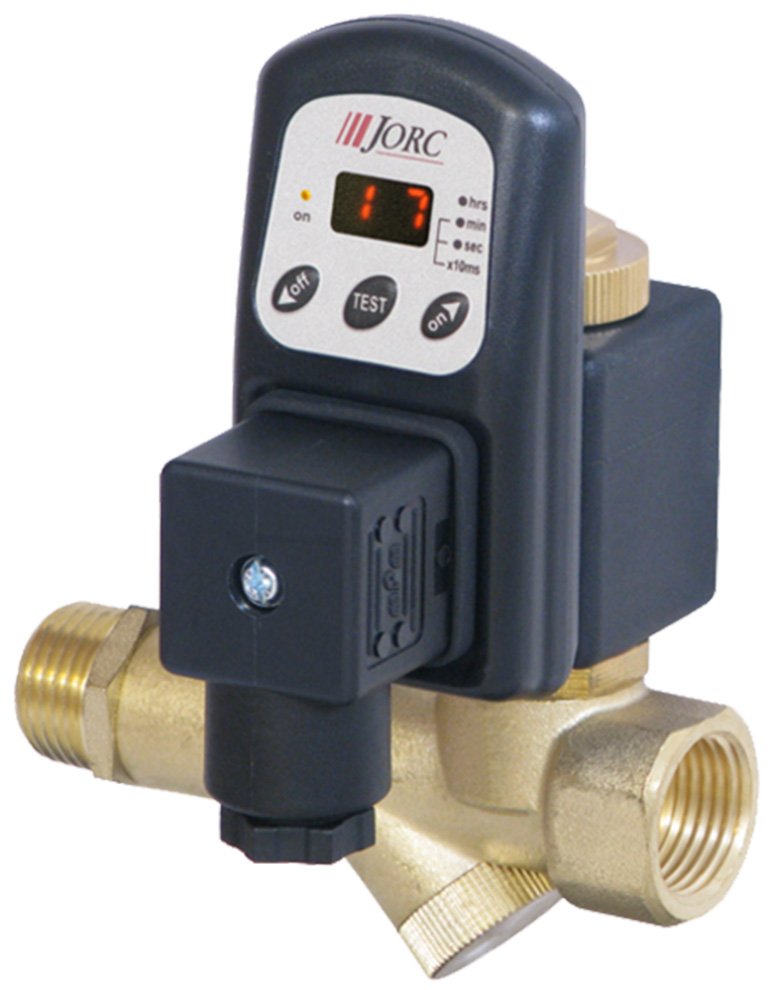

The JORC Industrial COMBO-D-LUX Series drain combines a premium electronic timer controlled drain, ball valve, and a mesh strainer into one compact easy to install package. Designed to be used for any flow range and pressures up to 230 PSI, the COMBO-D-LUX is perfect for virtually any compressed air application.
The COMBO-D-LUX features easy to use push button timer settings, bright digital display, test button, and LED lights. It can be adjusted to open or close for any time period from 10 milliseconds to 99 hours. The COMBO-D-LUX can be installed on any compressor, receiver, filter or refrigerated air dryer in any size compressed air system.
Overview and Features
Features
- 0 to 230 PSI pressure range
- 0.01 second to 99 hours timer cycle range (on and off)
- 1/4″ and 1/2″ NPT inlet size
- 1/2″ NPT outlet size
- Included test feature
- Integrated mesh strainer
- 4mm valve orifice
- 2/2 way, direct acting valve type
- FPM valve seals
- Brass valve body
- DIN 43650-A power connection
- NEMA4 (IP65) protection
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Voltage | 230 VAC, 115 VAC, 24 VAC, 24 VDC |
|---|
