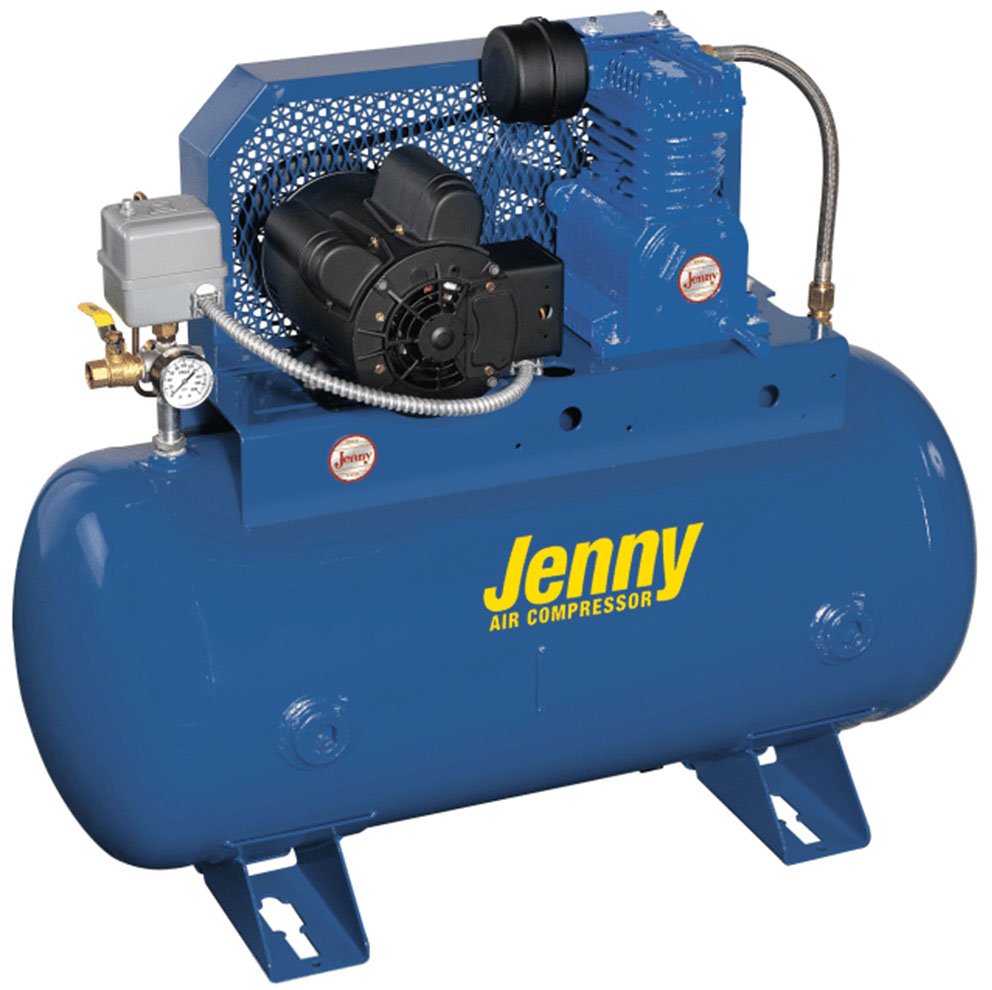

Jenny Single-Stage Climate Control Piston Air Compressor
Cast iron compressor pump mounted to ASME air tank, available in 1/2 to 1.5 HP (simplex) and 1 to 3 HP (duplex) configurations
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Jenny Single-Stage Climate Control Piston Air Compressor is a heavy-duty cast iron compressor pump mounted to a ASME air receiver tank. It is available in 1/2 to 1.5 HP (simplex) and 1 to 3 HP (duplex) configurations with capacities up to 15.8 CFM at 100 PSI. The splash-lubricated pump is belt-driven with a large flywheel for extra cooling and easier start-up. Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil for peak performance.
Overview and Features
Features
- Configurations:
- Simplex: 1/2 to 1.5 HP, 2.9 to 7.9 CFM at 100 PSI
- Duplex: 1 to 3 HP, 5.8 to 15.8 CFM at 100 PSI
- Splash lubricated
- Belt driven with a large flywheel
- Directional air shroud
- Enclosed heavy-duty belt guard
- 30 or 60 gallon ASME air receiver tanks
- Large canister intake filter with replaceable filter elements
- Manual tank drain
- Tank gauge included
- Pressure relief safety valve
- Auto Start/Stop control with pressure unloader set at 75 to 100 PSI
- Alternator and magnetic starter standard on duplex models
- Filled with Jenny Synthetic Blue Compressor Pump Oil
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Configuration | Simplex, Duplex |
|---|---|
| Horsepower | 1/2 HP, 1 HP, 1.5 HP, 1 HP (two 1/2 HP pumps), 2 HP (two 1 HP pumps), 3 HP (two 1.3 HP pumps) |
| Capacity | 2.9 CFM, 5.9 CFM, 7.9 CFM, 5.8 CFM, 11.8 CFM, 15.8 CFM |
| Pressure | 100 PSI |
| Tank Size | 30 gallon, 60 gallon |
| Tank Orientation | Horizontal, Vertical |
| Drain | Manual tank drain, Air operated automatic tank drain |
| Voltage | 208/3/60, 230/3/60, 460/3/60, 575/3/60, 115/1/60, 230/1/60 |
