Ingersoll Rand Modular Heatless Desiccant Dryer
Compact dryers deliver ISO Class 2 or Class 1 dew point performance, integrated units ideal at point-of-use, dew point starting at -40° F
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description

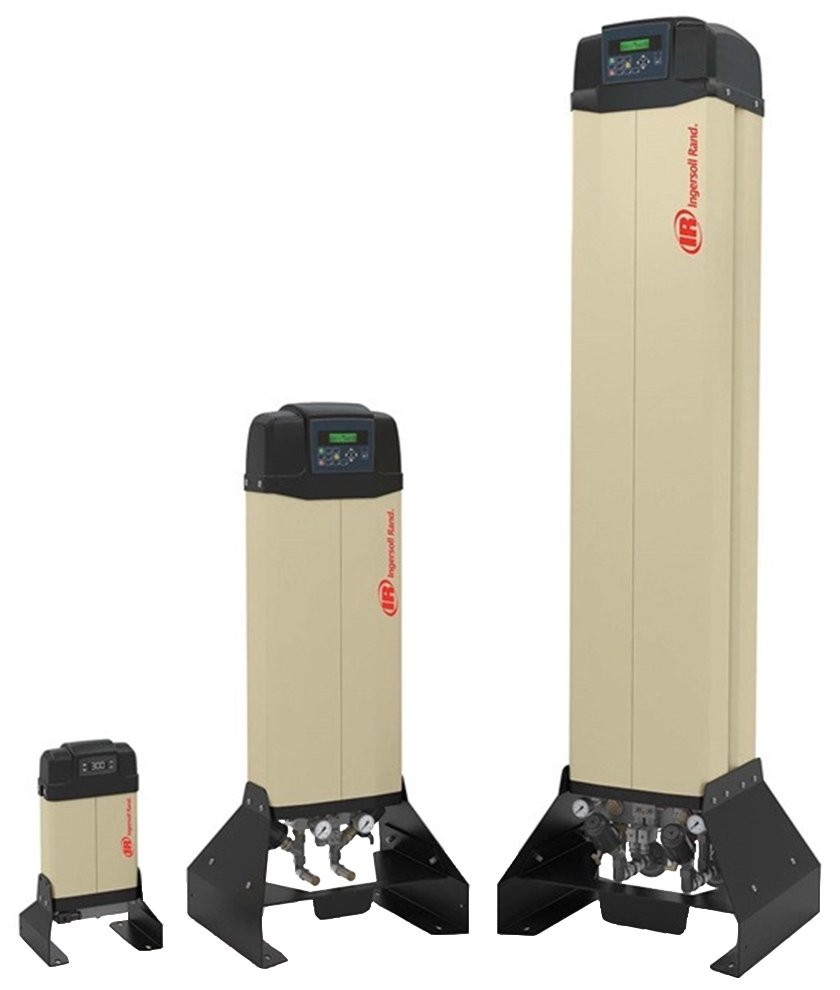

The Ingersoll Rand modular heatless desiccant dryer is a all-in-one and compact dryer system ideal at point-of-use, drying the air required for the user’s specific operation. The dryer delivers ISO Class 2 dew point performance, with optional ISO Class 1 to help prevent corrosion and minimize downtime. The low pressure drop design saves on energy costs and provides an economical drying solution. The addition of an Energy Management System (EMS) option further assists in energy use reduction.
The modular heatless desiccant dryer is easy to use with an advanced microprocessor with visual display showing data in real time to maintain dryer performance at optimum levels. The display also provides preventative maintenance alerts as well as protection notifications for efficiency and connectivity.
Overview and Features
Features
- 115/1/60 power supply
- 3 to 177 SCFM capacities
- 203psig max operating pressure
- 3/8, 3/4, 1, and 1.5in NPT in/out connections (based on selected SCFM)
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 3 SCFM, 9 SCFM, 15 SCFM, 24 SCFM, 32 SCFM, 41 SCFM, 59 SCFM, 88 SCFM, 118 SCFM, 147 SCFM, 177 SCFM |
|---|
