Ingersoll Rand

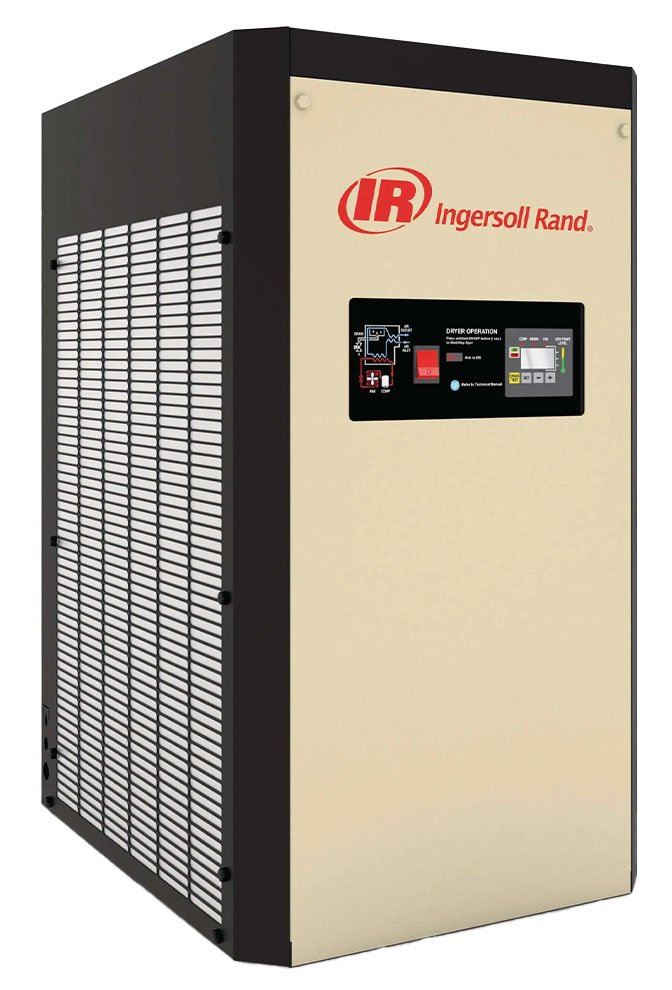

Ingersoll Rand D-IT Series High Inlet Temperature Non-Cycling Refrigerated Dryer
15 to 100 SCFM, designed for high inlet conditions up to 200°F, multi-stage cooling, smart controls
Request a tailored quote
Tell our team about your pressure, flow, voltage, and installation requirements.
Product overview
Built around your operating requirements.
Description
The Ingersoll Rand D-IT Series High Inlet Temperature non-cycling refrigerated air dryer is engineered for high-demand environments delivering reliable moisture removal at high inlet temperatures up to 200°F using eco-friendly R513a refrigerant. The D-IT Series features a compact design featuring integrated pre-cooling, wired 115 V plug, NPT connection, and automatic condensate drain for simplified installation and set up.
Overview and Features
Features
- 15 to 100 SCFM
- 115/1/60 voltage
- Heat exchanger:
- 15 to 35 SCFM: Brazed plate heat exchanger
- 60 to 100 SCFM: Aluminum plate fin heat exchanger
- Integrated filtration
- R513a refrigerant
- Automatic condensate drain
- UL/CSA Certified to meet UL 60335-1 and UL 60335-2-40 standards
Available configuration, accessories, delivery, and commissioning requirements will be confirmed during quotation.
Available specifications
| Capacity | 15 SCFM, 25 SCFM, 35 SCFM, 60 SCFM, 80 SCFM, 100 SCFM |
|---|---|
| Connection Size/Type | 3/4" FNPT, 1" FNPT |
